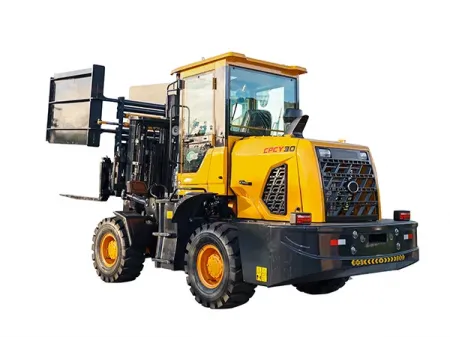

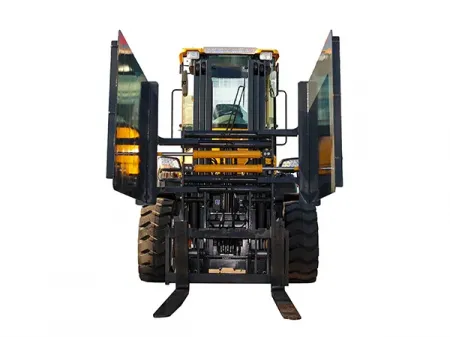

CPCY30/35/40 Rough Terrain Forklift
Request a Quote
Off-road forklift truck with rated load capacity options of 3000kg, 3500kg and 4000kg
- Rated load capacity
3000-4000kg - Total machine weight
4610kg - Fork length
1070-1200mm - Rated power
36.8kW
- Designed with a high chassis and wide off-road tires, providing excellent ground clearance and traction for rough terrain operations.
- Lifting height up to 4.5 meters ensures stable handling of heavy loads even on uneven surfaces.
- The fully enclosed cabin can be equipped with heating, air conditioning, a reversing camera, LED lights, and an ROPS safety frame, delivering both comfort and enhanced operational safety.
Specifications
| Model | | | |
| Rated load capacity | 3000kg | 3500kg | 4000kg |
| Total machine weight | 4610kg | 4610kg | 4610 |
| Fork length | 1070mm | 1070mm | 1200mm |
| Engine model | 490 National IV | 495 Boast | 4102 Boast |
| Rated power | 36.8kW | 36.8kW | 36.8kW |
| Rated speed | 2400r/min | 2400r/min | 2400r/min |
| Dumping height | 3000mm | 3000mm | 3000mm |
| Min. turning radius | 4400mm | 4400mm | 2680mm |
| Gearbox type | 265 high and low speed torque | 265 high and low speed torque | Hydraulic torque converter |
| Dimensions (L×W×H) | 5000×1900×2725mm | 4150×2050×2725mm | 5740×2130×2870mm |
| Tire model | 20.5/70-16 | 20.5/70-16 | 16/70-20 |
| Axle | Wheel-side axle | Wheel-side axle | Wheel-side axle |
Optional attachments
- Flat bucket
- Log grapple
- Bucket
- Forward tilting forks
- Round bale clamp
- Square bale clamp
