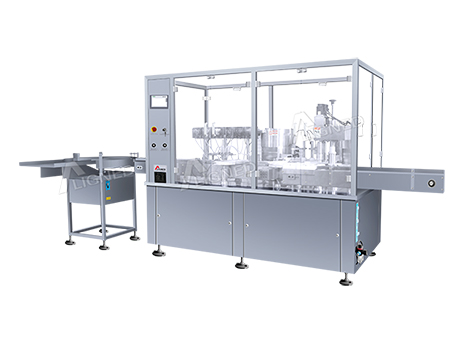

Automatic Liquid Filling, Plugging and Capping Machine
ALS Series
Our cutting-edge automatic liquid filling, plugging and capping machine represents a new standard in integrated bottle capping and sealing, combining innovative features to enhance efficiency and productivity. It is ideal for pharmaceuticals, chemicals, and health supplements, and is particularly suited to high-precision liquid filling for demanding applications. The pharmaceutical equipment is fitted with a precision robotic arm for secure gripping and precise sealing, guaranteeing durability and reliability with wear-resistant components. The filling volume of each pump can be adjusted independently, allowing for flexibility in meeting diverse production needs. It is designed for high-accuracy, large-scale production and meets GMP standards, guaranteeing precision, efficiency, and compliance in every operation.
| Model | |||||
| Filling Capacity Options | 10-100ml | 10-100ml | 10-100ml | 10-100ml | 10-100ml |
| Filling Heads | 2 heads | 4 heads | 4 heads | 6 heads | 8 heads |
| Plugging Heads | 1 head | 1 head | 2 heads | 2 heads | 2 heads |
| Capping Heads | 1 head | 1 head | 2 heads | 2 heads | 2 heads |
| Filling Speed | 30-40bpm (depending on the filling volume) | 40-50bpm (depending on the filling volume) | 60-70bpm (depending on the filling volume) | 70-80bpm (depending on the filling volume) | 70-90bpm (depending on the filling volume) |
| Filling Accuracy | ±1% | ±1% | ±1% | ±1% | ±1% |
| Supply Voltage | 380V/220V 50Hz | 380V/220V 50Hz | 380V/220V 50Hz | 380V/220V 50Hz | 380V/220V 50Hz |
| Power | 3.0kW | 3.0kW | 4.0kW | 4.0kW | 4.0kW |
| Weight | Approxi. 850kg | Approxi. 850kg | Approxi. 850kg | Approxi. 850kg | Approxi. 850kg |
| Dimension | 2400×1150×1700mm | 2400×1150×1700mm | 3200×1300×1700mm | 3200×1300×1700mm | 3200×1300×1700mm |

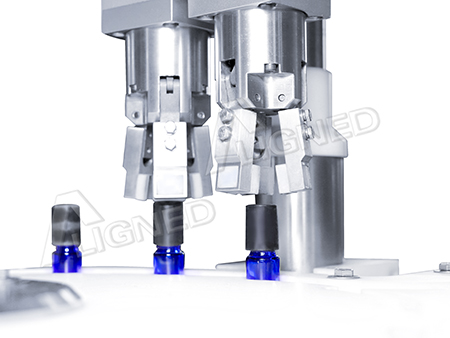

- The dual robotic arm system performs simultaneous capping operations on multiple bottles, significantly boosting production efficiency.

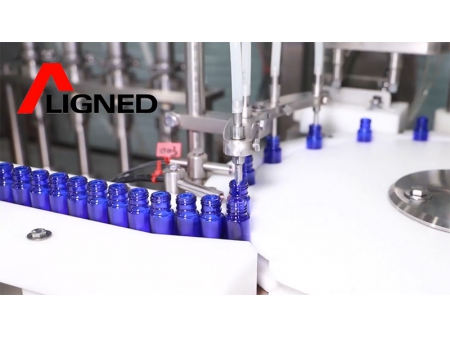

- The dual conveyor belt design allows for the processing of more bottles at once, speeding up each filling and capping cycle to enhance overall production output.

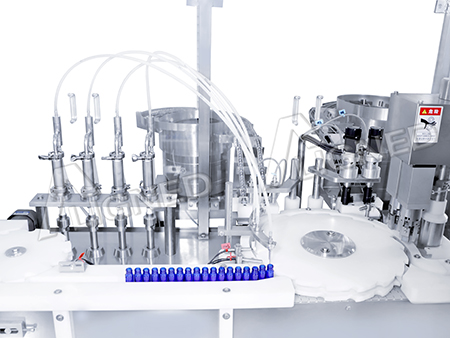

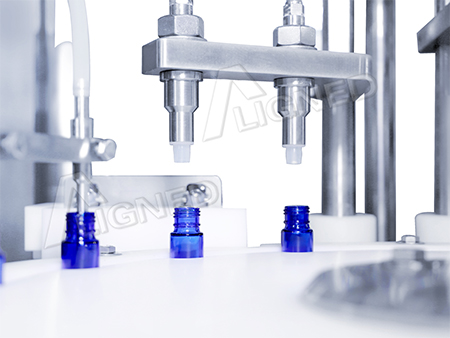

- The filling, plugging and capping machine features high filling accuracy, thanks to a precision control system that ensures exact liquid volumes. It is also compatible with various pump types, meeting diverse production requirements.
- The integrated capping system provides robust sealing capabilities, ensuring secure closures while minimizing errors and the risk of loose caps.
- Constructed with durable, wear-resistant components, it maintains stable and reliable performance in high-intensity production environments.
