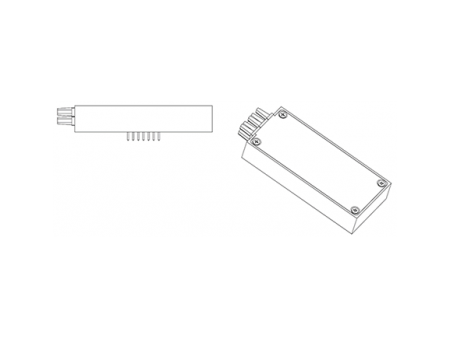

MEMS SM 1xN Optical Switch - Module

Request a Quote

Website: http://laserdiodedevice.com/7-1-2-mems-sm-1xn-switch-module.html

Optical Specifications

PARAMETER		VALUE	UNIT	NOTE
Wavelength Range		13:1290~1330 15:1525~1570 16:1600-1650	nm	Single-band: 13, 15, or 16 Dual-band: 13&15 or 15&16
Test Wavelength		1310/1550/1625	nm	Each test wavelength is the CWL of a specific wavelength range
Channels		2~64		N
Insertion Loss	1x2	≤0.6	dB	1. IL is measured at CWL, 23°C 2. IL is for Single-band. Dual-band adds 0.2dB 3. If with standard connectors, IL increases by 0.2~0.3dB
	1x4	≤0.8
	1x8
	1x12	≤1.0
	1x16
	1x24	≤1.2
	1x32
	1x48	≤1.3
	1x64
Return Loss		≥45	dB	Or customer-defined
Repeatability		≤0.05	dB	Repeatability is defined after 100 cycles
Crosstalk		≥45	dB	Or customer-defined
Polarization Dependent Loss		≤0.2	dB
Wavelength Dependent Loss	N≤32	≤0.3	dB	WDL is measured at CWL ±20nm, 23°C
	32<N ≤ 64	≤0.4
Temperature Dependent Loss	N≤32	≤0.3	dB
	32<N ≤ 64	≤0.4
Switch Time	N≤16	≤5	ms	1. Excluding protocol transmission time 2. When using optimized voltage ramp 3. Faster 1xN switching time version available upon request
	16<N ≤ 64	≤0.10
Durability		≥1x10⁹	cycle
Maximum Optical Power		≤500	mW

Electrical and Mechanical Specifications

PARAMETER	VALUE	UNIT	NOTE
Latching Type	Non-latching
Control Type	UART or parallel
Supply Voltage	5±0.25	V
Power Consumption	≤0.7	W
Dimension	68x30x13	mm	2≤N≤16
	75x30x13		16 < N≤32
	75x30x16.4		32 < N≤48
	80x30x18		48 < N≤64

Environmental Conditions

PARAMETER	VALUE	UNIT	NOTE
Operation Temperature	-5~65	°C
Storage Temperature	-40~85	°C
Operation Humidity	5~95	%RH
Storage Humidity	5~95	%RH

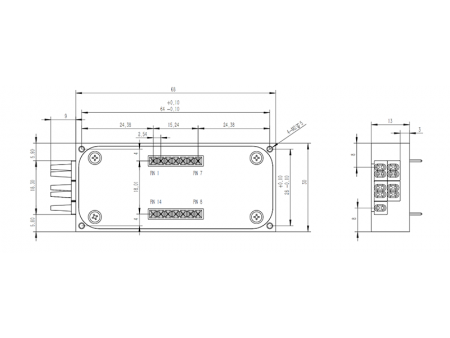

• Module Type 1 (1xN, 2≤N≤16)

• Module Type 2 (1xN, 16⁢N≤32)

• Module Type 3 (1xN, 32⁢N≤48)

• Module Type 4 (1xN, 48⁢N≤64)
