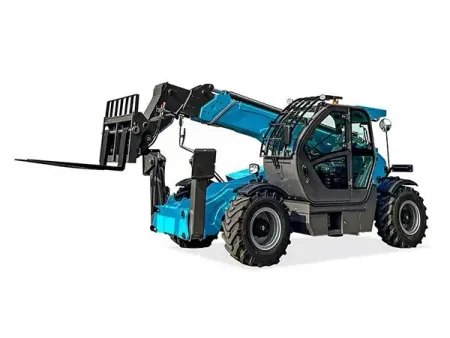

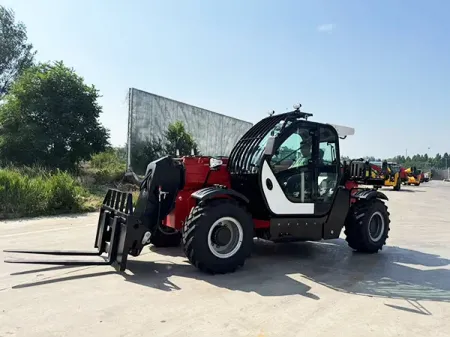

Telescopic Handler

Request a Quote

Website: http://sutemachinery-en.com/7-telescopic-handler.html

Off-road forklift truck with rated load capacity options of 5000kg, 7000kg and 10000kg

Rated power
76.7-92kW
Max. lifting capacity
3000-4500kg
Max. lifting capacity at maximum reach
2800-3200kg
Load capacity at maximum boom extension
500-1500kg

Specifications

Model	TH735	TH1030	TH1440	TH1840
Engine
Model	Yunnei 4102	Yunnei 4102	Cummins 4BT3.9-C125	Cummins 4BT3.9-C125
Rated power	76.7kW	76.7kW	92kW	92kW
Type	Four stroke, diesel engine	Four stroke, diesel engine	Four stroke, diesel engine	Four stroke, diesel engine
Displacement	3760L	3760L	3910L	3910L
Performance
Max. lifting capacity	3500kg	3000kg	4500kg	4000kg
Max. lifting capacity at maximum reach	2800kg	2500kg	3200kg	2500kg
Load capacity at maximum boom extension	1100kg	500kg	1500kg	850kg
Max. lifting height	7000mm	10000mm	14000mm	17550mm
Max. horizontal boom extension	3300mm	5900mm	9450mm	1300mm
Gradeability	30%	30%	30%	30%
Machine weight	8500kg	9500kg	11500kg	12500mm
Max. speed	40km/h	40km/h	40km/h	40km/h
Differential - Axles
Driving model	4WS, crab steering, 2WS	4WS, crab steering, 2WS	4WS, crab steering, 2WS	4WS, crab steering, 2WS
Front axle	Rigid	Rigid	Rigid	Rigid
Rear axle	Oscillating	Oscillating	Oscillating	Oscillating
Moving brake	Service air brake (disc) on the 4 wheels with double hydraulic system	Service air brake (disc) on the 4 wheels with double hydraulic system	Service air brake (disc) on the 4 wheels with double hydraulic system	Service air brake (disc) on the 4 wheels with double hydraulic system
Parking brake	Negative parking brake	Negative parking brake	Negative parking brake	Negative parking brake
Tires	405/70-20	405/70-20	405/70-24	405/70-24
Dimensions (see dimension drawing in PDF)
Length (without fork) D	5300mm	5300mm	6100mm	6100mm
Height F	2300mm	2300mm	2480mm	2480mm
Width H	2150mm	2150mm	2300mm	2300mm
Shaft distance B1	2950mm	2950mm	3150mm	3150mm
Tire distance G	1760mm	1760mm	1900mm	1900mm
Cabin width E	910mm	910mm	910mm	910mm
Ground clearance A	370mm	370mm	370mm	370mm
Front tires to rear chassis C	4050mm	4050mm	4600mm	4600mm

Optional Features

Overloading warning & limitation system
Tiltable chassis ( -6°)
Side shift
Fork positioner
Raisable cabin
Large bucket for bulk materials
Standard bucket for construction tasks
Multiple working platforms (Foldable working platform, swing working platform etc.)
Wide range of attachments available, such as lifting hook, log grapple, auger, mixing bucket, tilted fork, 4-in-1 bucket, winch, bale clamp, and manipulator

TH735
TH1030
TH1440
TH1840
