Vertical Form Fill Seal Machine with Vibratory Bowl Feeder, SK-L3B320-ZP
Request a Quote
Features
- Bag forming, material measuring and filling, bag sealing and cutting are all completed in one linear process.
- Unique packaging sealing technology improves the seal aesthetics and fastness.
- Multiple vibrating disks are used to place different materials into one bag.
- One, two, three or mor vibrating disk configurations are optional depending on the customer's individual requirements.
Application
- The VFFS machine with a vibratory bowel feeder is suitable for packaging various hardware fittings, including:
- Hardware: screw, nut, gasket
- Plastic parts: expansion pipe, rubber ring
- Furniture parts: self-tapping screw, fastener, stamping parts
- Other components: bathroom hardware accessories, electronic parts, bike parts and more
Technical Parameters
| Model | SK-L3B320-ZP |
| Film width | Max.320mm |
| Bag length | 50-200mm |
| Bag width | 30-150mm |
| Measurement range | 30-150ml |
| Packaging speed | 5-50bags/min (depending on the materials, film and quantity of materials to be filled in each bag） |
| Film roll outer diameter | Max.360mm |
| Power | 220V.50Hz/60Hz，2.8kw |
| Measurement method | weighing |
| Packaging | OPP/CPP.OPP/CE.MST/PE/PET/PE |
| Bag format | pillow bag or 3-side seal bag |

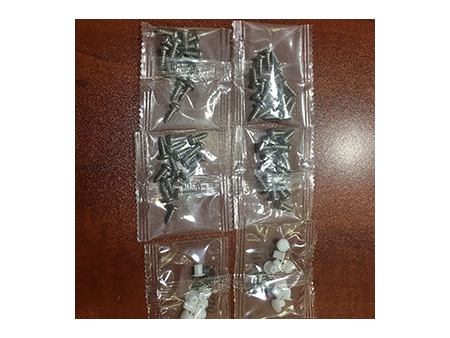

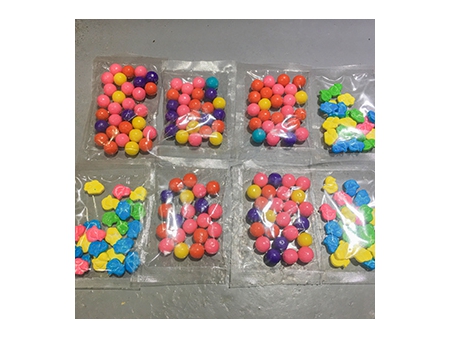

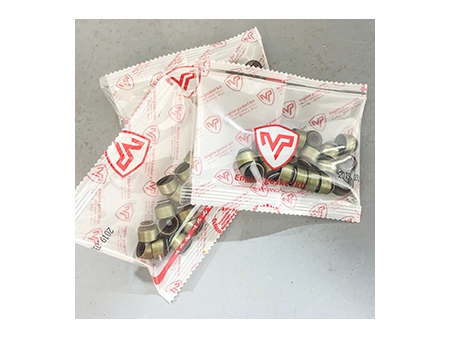

Packaging materials samples
If you are interested in our VFFS machine with vibratory bowel feeder, feel free to contact us for more details.
