JGW109B Assembly Winder

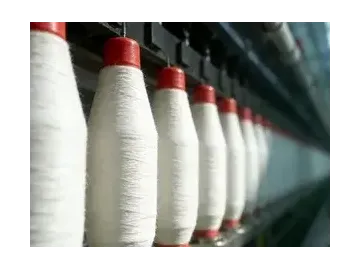

JGW109B is a high-speed assembly winder used as an upstream preparation machine for covering machines, fancy yarn twisting machines, and similar textile equipment. It is suitable for winding yarn materials such as chemical fibers and blended yarns into packages for subsequent processing.
The assembly winder adopts a single-spindle independent control system, where each spindle operates separately. Overfeed, yarn guiding, and spindle rotation are all independently driven, allowing more flexible adjustment during the winding process. This integrated electromechanical design helps maintain stable winding conditions and consistent yarn package quality during production.
JGW109B is used as an upstream winding machine for equipment such as yarn covering machines and fancy yarn twisting machines. It is suitable for winding yarn materials such as chemical fibers and blended yarns before further processing.
| Machine Layout | Double-sided, single-layer |
| Number of Spindles | 96 (16 spindles per section) |
| Spindle Pitch | 245mm |
| Winding Speed | < 1600m/min |
| Control Mode | Individual spindle control |
| Winding Bobbin Size | Straight type 140 / 165 ×φ84 (mm) optional Tapered type 135 / 150 ×φ76 (mm) optional |
| Installed Power | 28.8kW(300W/spindle) |
| Dimensions | 12820×1150×1500mm |
- Spindle Drive System
Each spindle is driven by an independent motor and equipped with high-speed spindles developed by Jinggong, supporting stable and efficient winding performance.
- Independent Yarn Guide Units
Each spindle is equipped with an independent yarn guiding device that helps maintain stable winding tension. This supports better yarn package formation and helps improve performance in downstream processing.
- Automatic Edge Positioning Device
When winding begins, it automatically detects and positions the yarn edge on the bobbin. This helps control yarn placement precisely and maintain consistent package formation across all spindles.
- Overfeed Roller System
Equipped with an overfeed roller structure that helps regulate yarn tension during winding.
- Online Tension Monitoring System
Each spindle is equipped with a high-precision online tension sensor that continuously monitors yarn tension, helping maintain uniform tension and consistent yarn package quality.
