Clinching Press (8-Ton C-Frame Bench Press)
Request a Quote
- Clamping Force 76kN
- Force Stroke 5-52mm
- Daylight 200mm
The CEB Series clinching bench press is a versatile clinching and pressing solution engineered for industrial applications requiring high precision. It serves a diverse global clientele across sectors including automotive, home appliances, HVAC (refrigeration), sheet metal fabrication, electrical, elevators, and furniture hardware. Its highly adaptable design allows it to function as a stationary bench-top press, a portable clinching unit, or as a standalone cell within a fully automated production line.

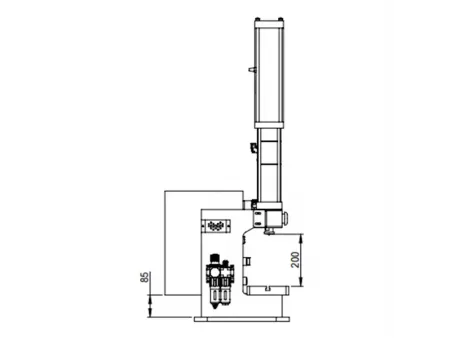

Dimensions
| Model | Max. Capacity | A | B | C | D | E | H | T-slot | ||
| kN | T | |||||||||
| CEB | 8 | 78 | 7.8 | 450 | 480 | 250 | 160 | 120 | 320 | 12 |
System Configuration

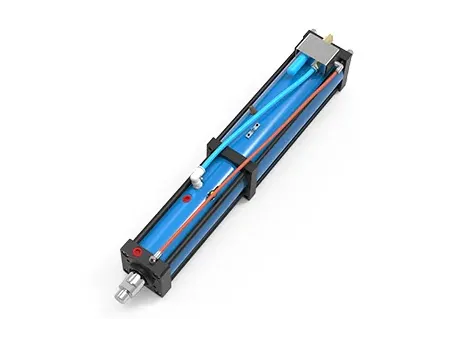

- Pneumohydraulic Cylinder
- CEB Press Frame
- STE Safety Control System
Key Advantages
- Simplified Power Drive: Utilizes an advanced pneumohydraulic cylinder as the primary power actuator.
- Generates 2kN-2000kN of pressing force using only 2-8 bar compressed air, eliminating the need for complex hydraulic power units.
- Pressing force is infinitely adjustable within the specified range.
- Unique "Adaptive" Pressing Technology: The power stroke is automatically triggered at any point within the total stroke upon contact with the workpiece.
- No stroke adjustment is required when changing tools or workpieces. During the power stroke, the force automatically adapts to load changes, optimizing the assembly process.
