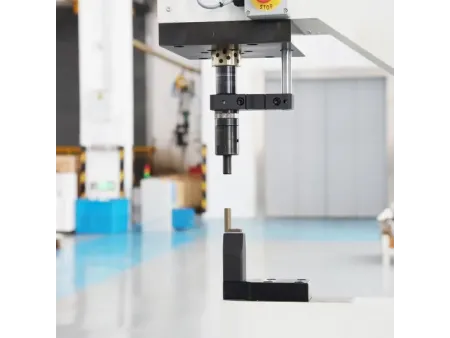

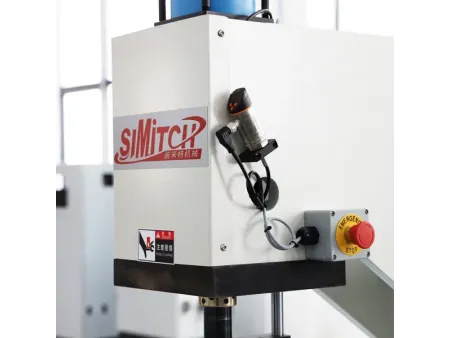

Clinching Press (15-Ton C-Frame Floor Press)
Request a Quote
- Pressing Force 147kN
- Throat Depth 500mm
- Daylight 45mm
The versatile CEU clinching press is a robust floor press solution engineered for high-precision press-fitting and clinching across a wide spectrum of industrial sectors. It is extensively utilized in industries such as automotive, home appliances, HVAC (refrigeration), sheet metal fabrication, electrical, elevators, and furniture hardware. Equipped with a 500mm throat depth, features a stable, monoblock cast iron design that ensures maximum rigidity and minimal deflection under load. The press supports customization requirements.
Dimensions
| Model | Max. Capacity | A | B | C | D | E | ||
| kN | T | |||||||
| CEU | 15 | 147 | 14.7 | 1045 | 800 | 1100 | 500 | 60 |
System Configuration
- Pneumohydraulic Cylinder
- CEU C-Frame Press Body
- STE Safety Control System
Key Advantages
- Simplified Power Drive: Utilizes an advanced pneumohydraulic cylinder as the primary power actuator.
- Generates 2kN-2000kN of pressing force using only 2-8 bar compressed air, eliminating the need for complex hydraulic power units.
- Pressing force is infinitely adjustable within the specified range.
- Unique "Adaptive" Pressing Technology: The power stroke is automatically triggered at any point within the total stroke upon contact with the workpiece.
