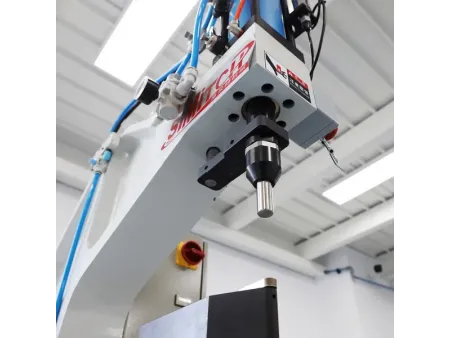

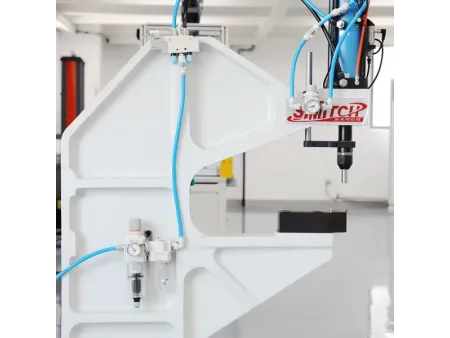

Clinching Press (8-Ton C-Frame Floor Press)
- Pressing Force 78kN
- Throat Depth 500mm
- Daylight 45mm
The CEC08 Series is a versatile C-frame clinching press engineered for precision press-fitting and joining across diverse industries, including automotive, home appliances, HVAC, sheet metal, electrical, elevators, and furniture hardware. Featuring a stable, one-piece cast iron design with an extra-deep throat, the CEC series is specifically optimized for applications requiring long, high-precision strokes.
This clinching press excels in rivet-less clinching for thin sheet metal and the precision assembly of small-to-medium components. Key applications includes deep-throat joining for sheet metal brackets, cabinets, and enclosures in the automotive and appliance sectors; Quantitative press-fitting of bearings, bushings, sleeves, and self-clinching nuts.
| Model CEC08-01 | Max. Capacity | Throat Depth (mm) | Daylight (mm) | ||
| kN | T | ||||
| CEC | 8 | 78 | 8 | 500 | 45 |
- Pneumohydraulic Cylinder
- CEC Press Frame
- STE Safety Control System
- Simplified Power Drive: Utilizes an advanced pneumohydraulic cylinder as the primary power actuator.
- Generates 2kN-2000kN of pressing force using only 2-8 bar compressed air, eliminating the need for complex hydraulic power units.
- Pressing force is infinitely adjustable within the specified range.
- Unique "Adaptive" Pressing Technology: The power stroke is automatically triggered at any point within the total stroke upon contact with the workpiece.
- No stroke adjustment is required when changing tools or workpieces. During the power stroke, the force automatically adapts to load changes, optimizing the assembly process.
