Cavitation cleaning pump for precision cleaning of industrial parts and components

  • Max. pressure: 81 MPa
  • Max. flow: 156 L/min

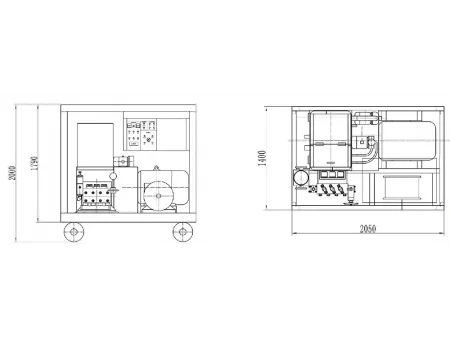

  • Dimensions: 2050×2000×1400 mm

This Cavitation Cleaning Pump adopts cavitation cleaning technology, an efficient and environmentally friendly cleaning method. It removes contaminants through micro-jets and shock waves generated by liquid cavitation effects. By utilizing cavitation (micro-jets and impact waves), it achieves efficient and residue-free cleaning. The power end uses a bearing-type transmission structure, and the lubrication system adopts splash lubrication, allowing continuous 24-hour operation without the need for cooling.

Features
  • Automatic water replenishment function at low water level and automatic shutdown function at high water level
  • The booster pump and main pump start and stop simultaneously
  • The dissolved gas pump operates independently and is activated solely when cavitation-enhanced cleaning is required
Application Scenarios

This cavitation cleaning high-pressure washer is suitable for:

  • Conveying tap water, deionized water, and softened water
  • Precision cleaning of components in industrial manufacturing fields
Parameter Table
Input Speed (r/min) 1480 Plunger Stroke (mm) 100
Theoretical Flow Motor Power (kW) Plunger Dia. (mm)
22 37 45 55 75 90
m³/h L/min Rated Pressure (MPa)
1.00 17 63 // // // // // 15
1.80 30 36 64 78 // // // 20
2.90 48 22 40 49 60 81 // 25
4.20 70 15 28 35 42 57 70 30
4.80 80 13 26 32 39 53 62 32
5.70 95 11 21.5 26 32 44 50 35
7.38 123 8.7 16.5 20 25 34 40 40
9.36 156 6.9 12 16 19.5 26.5 30 45
