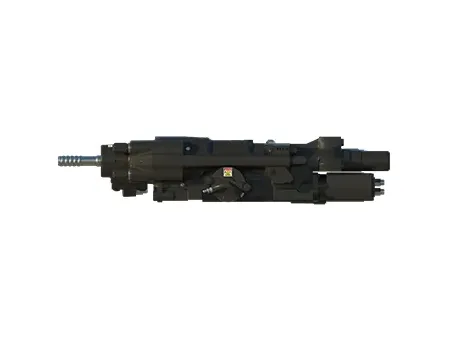

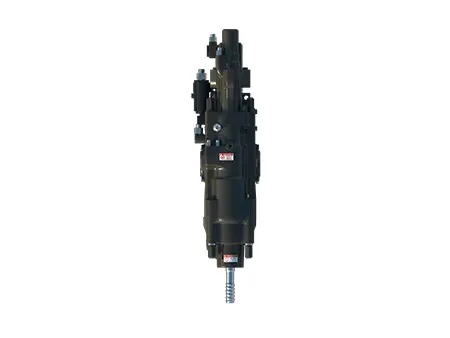

1838HD
Hydraulic Rock Drilling Components
  • Impact Output Power: 18kW
  • Drilling Diameter: Ø38-64mm

The 1838HD hydraulic rock drill drifter delivers a high torque output designed to facilitate efficient drilling and significantly minimize the risk of drill string jamming.

  • The design ensures optimized rock-to-bit contact, which stabilizes the drilling process. It also includes internal mechanisms to protect the drifter's body and internal components from harmful energy recoil.
  • By ensuring the effective removal of rock cuttings, the 1838HD drifter prevents the regrinding of debris. This efficiency directly extends the service life of the drill bit, reducing consumable costs and environmental impact.
Product Parameters
Max. Impact Output Power 18kW
Impact Frequency 60Hz
Max. Impact Pressure 230bar
Impact Oil Flow 75-92L/min
Max. Rotation Torque 1000Nm
Rotation Speed 0-340rpm
Max. Rotation Pressure 210bar
Rotation Oil Flow 75L/min
Drilling Diameter Range 38-64mm
Compatible Shank Adapters R32/R38/T38
Operating Weight 175kg
Accessories

Spline wear sleeve

Piston

Shank

Shank bushing

Cylinder copper sleeve

Accumulator diaphragm
