1238k
Surface Drilling Equipment Attachment
  • Impact Output Power: 12kW
  • Drilling Diameter: Ø51-89mm

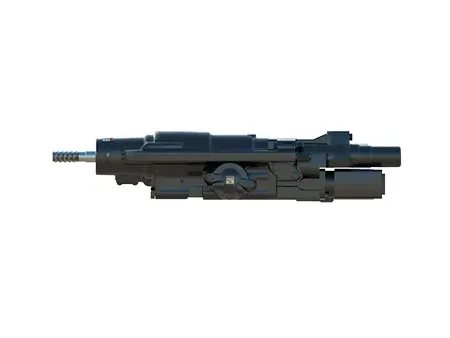

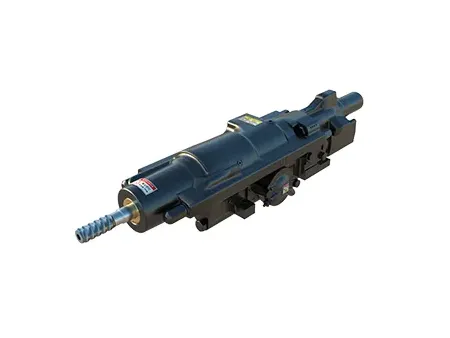

The 1238k hydraulic rock drill drifter features an integrated reflex damper that enhances drill steel economy while reducing wear on the rock drill, feed, and boom. Additionally, it is equipped with a powerful, steplessly variable, and reversible rotation motor that provides high torque and exceptional speed control. The piston is designed with an optimized profile to perfectly match the drill steel, delivering optimal impact force without causing damage. These improvements ensure high efficiency and reliability, enabling superior productivity, reduced downtime, and enhanced overall performance.

Product Parameters
Max. Impact Output Power 12 kW
Impact Frequency 40-60Hz
Max. Impact Pressure 220 bar
Impact Oil Flow 61-79 L/min
Motor Displacement 100cc 160cc 250cc
Max. Rotation Torque 640Nm 1000Nm 1550Nm
Rotation Speed 0-340rpm 0-210rpm 0-140rpm
Max. Rotation Pressure 210bar 210bar 200bar
Rotation Oil Flow 75L/min 75L/min 75L/min
Drilling Diameter Range 51-89mm
Compatible Shank Adapters T38/T45
Operating Weight 172kg
Accessories

Spline wear sleeve

Piston

Shank

Shank bushing

Front guide sleeve

Accumulator diaphragm
