PCBN Tools (Tool Bits for Whirling), CCGW

Request a Quote

Website: http://winicetech-en.com/pcbn-cutting-tools-ccgw-2-2-1.html

Technical Specifications

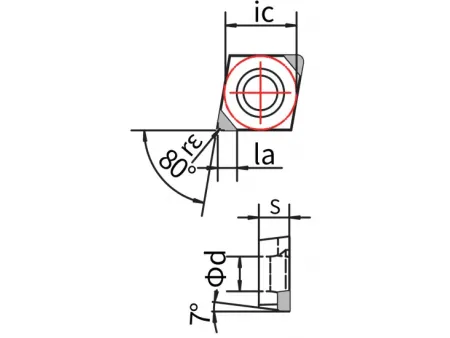

ISO Code	ANSI Code	Tips	Tip Forming	Edge Length	Hole Diameter	Thickness	Nose Radius	Tip Length	H	K	S
				ic	Ød	s	r	la
CCGW060202	CCGW2(1.5)(0.5)	2N	Standard	6.35	2.8	2.38	0.2	2.2	●	●	●
CCGW060204	CCGW2(1.5)1						0.4
CCGW060208	CCGW2(1.5)2						0.8
CCGW060202	CCGW2(1.5)(0.5)	2N	Wiper	6.35	2.8	2.38	0.2	2.2	●	●	●
CCGW060204	CCGW2(1.5)1						0.4
CCGW060208	CCGW2(1.5)2						0.8
CCGW060202	CCGW2(1.5)(0.5)	2N	Chip breaker	6.35	2.8	2.38	0.2	2.2	●	●	●
CCGW060204	CCGW2(1.5)1						0.4
CCGW060208	CCGW2(1.5)2						0.8
CCGW060202	CCGW2(1.5)(0.5)	2N	Standard	6.35	2.8	2.38	0.2	3	●	●	●
CCGW060204	CCGW2(1.5)1						0.4
CCGW060208	CCGW2(1.5)2						0.8
CCGW060202	CCGW2(1.5)(0.5)	2N	Wiper	6.35	2.8	2.38	0.2	3	●	●	●
CCGW060204	CCGW2(1.5)1						0.4
CCGW060208	CCGW2(1.5)2						0.8
CCGW060202	CCGW2(1.5)(0.5)	2N	Chip breaker	6.35	2.8	2.38	0.2	3	●	●	●
CCGW060204	CCGW2(1.5)1						0.4
CCGW060208	CCGW2(1.5)2						0.8
CCGW09T302	CCGW3(2.5)(0.5)	2N	Standard	9.525	4.4	3.97	0.2	2.2	●	●	●
CCGW09T304	CCGW3(2.5)1						0.4
CCGW09T308	CCGW3(2.5)2						0.8
CCGW09T312	CCGW3(2.5)3						1.2
CCGW09T302	CCGW3(2.5)(0.5)	2N	Wiper	9.525	4.4	3.97	0.2	2.2	●	●	●
CCGW09T304	CCGW3(2.5)1						0.4
CCGW09T308	CCGW3(2.5)2						0.8
CCGW09T312	CCGW3(2.5)3						1.2
CCGW09T302	CCGW3(2.5)(0.5)	2N	Chip breaker	9.525	4.4	3.97	0.2	2.2	●	●	●
CCGW09T304	CCGW3(2.5)1						0.4
CCGW09T308	CCGW3(2.5)2						0.8
CCGW09T312	CCGW3(2.5)3						1.2
CCGW09T302	CCGW3(2.5)(0.5)	2N	Standard	9.525	4.4	3.97	0.2	3	●	●	●
CCGW09T304	CCGW3(2.5)1						0.4
CCGW09T308	CCGW3(2.5)2						0.8
CCGW09T312	CCGW3(2.5)3						1.2
CCGW09T302	CCGW3(2.5)(0.5)	2N	Wiper	9.525	4.4	3.97	0.2	3	●	●	●
CCGW09T304	CCGW3(2.5)1						0.4
CCGW09T308	CCGW3(2.5)2						0.8
CCGW09T312	CCGW3(2.5)3						1.2
CCGW09T302	CCGW3(2.5)(0.5)	2N	Chip breaker	9.525	4.4	3.97	0.2	3	●	●	●
CCGW09T304	CCGW3(2.5)1						0.4
CCGW09T308	CCGW3(2.5)2						0.8
CCGW09T312	CCGW3(2.5)3						1.2
CCGW120402	CCGW43(0.5)	2N	Standard	12.7	5.5	4.76	0.2	2.2	●	●	●
CCGW120404	CCGW431						0.4
CCGW120408	CCGW432						0.8
CCGW120412	CCGW433						1.2
CCGW120402	CCGW43(0.5)	2N	Wiper	12.7	5.5	4.76	0.2	2.2	●	●	●
CCGW120404	CCGW431						0.4
CCGW120408	CCGW432						0.8
CCGW120412	CCGW433						1.2
CCGW120402	CCGW43(0.5)	2N	Chip breaker	12.7	5.5	4.76	0.2	2.2	●	●	●
CCGW120404	CCGW431						0.4
CCGW120408	CCGW432						0.8
CCGW120412	CCGW433						1.2
CCGW120402	CCGW43(0.5)	2N	Standard	12.7	5.5	4.76	0.2	3	●	●	●
CCGW120404	CCGW431						0.4
CCGW120408	CCGW432						0.8
CCGW120412	CCGW433						1.2
CCGW120402	CCGW43(0.5)	2N	Wiper	12.7	5.5	4.76	0.2	3	●	●	●
CCGW120404	CCGW431						0.4
CCGW120408	CCGW432						0.8
CCGW120412	CCGW433						1.2
CCGW120402	CCGW43(0.5)	2N	Chip breaker	12.7	5.5	4.76	0.2	3	●	●	●
CCGW120404	CCGW431						0.4
CCGW120408	CCGW432						0.8
CCGW120412	CCGW433						1.2
