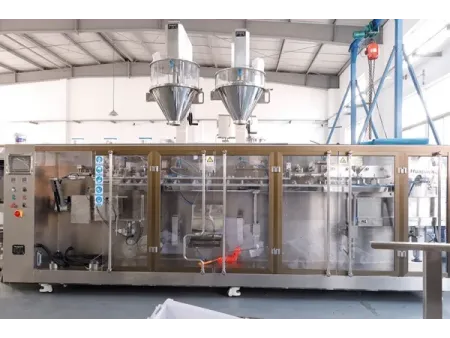

Premade Pouch Packaging Machine, 1-Nozzle Filling
Operating at a stable speed of around 40 pouches per minute, these horizontal premade pouch packaging machines are designed for large fill volumes of up to 4000 ml and built with a reinforced structure and high-performance servo drives for continuous, heavy-duty production. The larger hopper and wider filling range reduce the need for frequent refilling, helping the line run more smoothly. These premade pouch filling systems are equipped with a vacuum and nitrogen flushing system to remove air efficiently from high-volume pouches, and the reinforced heat-sealing unit creates firm, reliable seals.
Applications
Suitable for packing large-size pouches in industries such as household and personal care, pharmaceuticals, and pet food.
- Pouch loading
- Pouch pick-up
- Pouch opening detection
- Bottom opening
- Filling
- Pouch spreading
- Heat sealing
- Seal cooling
- Finished pouch forming
- Finished pouch discharge
| Model | 330NG | |
| Pouch parameters | Min. pouch size (W × H) | 110×150mm |
| Max. pouch size (W × H) | 330×500mm | |
| Max. filling volume | 4000ml | |
| Packing speed (pouches/min) | ≤40 | |
| Equipment specifications | Machine dimensions (L × W × H)） | 3475mm×1215mm×1600mm |
| Total machine weight | 1800kg | |
| Operating conditions | Ambient temperature | -10℃-＋55℃ |
| Relative humidity (non-condensing) | <85% | |
| Power supply | AC380V, 50Hz | |
| Working air pressure | 0.6Mpa | |
| Air consumption | 400L/min | |
| Main motor power | 5.5Kw | |
Zipper opening
Pouch hole punching
- Sombrero hole (butterfly hole)
- Round hole
- Special-shape punching
- Arc hole / Curved slot hole
- Euro hole
Coding options
- Hot stamp coding
- Inkjet printing
- Laser marking
Sealing patterns
- Grid pattern
- Dotted pattern
- Plain/flat pattern
- Vertical rib pattern
In 2024, a pharmaceutical company based in Guangzhou purchased our 330NG premade pouch packaging machine to improve their packaging process. Since commissioning, the packaging equipment has been running smoothly, and the customer has reported stable operation with no after-sales issues.
