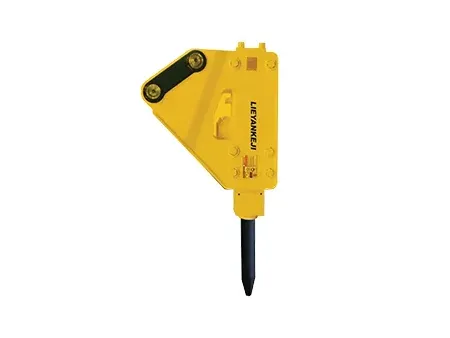

Side Type Breaker Hammer

Side Type Breaker Hammer
Side Type Breaker Hammer
Side Type Breaker Hammer
Request a Quote
Website:
Excavator Attachment for Mining, Foundations, and Infrastructure

The side type hydraulic breaker hammer is characterized by its compact structure, powerful impact force, and exceptional durability. Featuring sensitive operation response and precise positioning, this breaker is engineered for various rock crushing and concrete demolition applications. The overall design balances strength and service life, maintaining stable output under high-frequency impact conditions to effectively improve construction efficiency and reduce failure rates.

→
Bracket Options & Advantages

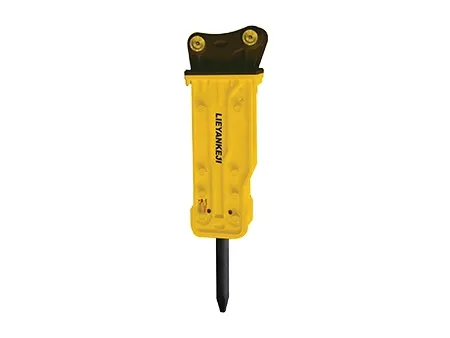

  • Top-Mount Delivers precise positioning and intuitive control; high carrier compatibility; lightweight design significantly reduces chisel stress and fracture risks.
  • Box-Silenced Engineered for low-decibel operation to meet strict environmental standards; effectively minimizes construction noise pollution in urban areas.
  • Side-Mount Features a shorter overall length for superior maneuverability; low-maintenance configuration reduces long-term operational costs.
Product Parameters
Compact Range Medium Range
Model LYPS100 LYPS200 LYPS300 LYPS350 LYPS400 LYPS430 LYPS450 LYPS900 LYPS1600 LYPS2000 LYPS2200 LYPS2200A
Carrier Weight (t) 0.8-2.5 1.2-3.0 2.5-4.5 3.0-5.5 4-7 6-9 7-14 10-15 15-18 18-26 18-26 18-26
Operating Weight (kg) 77 90 132 198 275 418 561 842 1381 1609 1950 1950
Oil Flow (L/min) 15-30 20-40 25-50 30-60 40-70 50-90 60-100 80-110 90-120 100-150 120-180 120-180
Operating Pressure (bar) 150 150 150 150 170 180 190 200 210 210-230 210-230 210-230
Relief Pressure (bar) 90-120 90-120 90-120 100-130 110-140 120-150 130-160 150-170 150-170 160-180 160-180 160-180
Impact Energy (J) 203 271 406 542 677 1017 1355 2033 2711 3423 4067 4067
Impact Rate (bpm) 800-1400 700-1200 600-1100 500-1000 500-900 400-800 400-800 350-700 350-650 350-600 350-500 350-500
Hose Size (inch) 1/2 1/2 1/2 1/2 1/2 1/2 3/4 3/4 1 1 1 1
Noise Level (dB) 106 107 109 117 109 115 112 114 115 120 118 118
Chisel Dia. (mm) 40 45 53 60 68 75 85 100 125 135 140 140
Large Range
Model LYPS3000 LYPS3200 LYPS3500 LYPS3500F LYPS4500 LYPS3000G LYPS4000G LYPS185 LYPS195 LYPS195P LYPS200 LYPS205 LYPS210 LYPS220
Carrier Weight (t) 25-30 28-35 30-40 30-40 35-40 25-33 35-45 35-45 40-55 50-55 50-70 50-70 60-80 70-80
Operating Weight (kg) 2350 2655 2735 3289 4167 2462 3001 4376 5039 5374 6205 6375 6683 7378
Oil Flow (L/min) 150-210 180-240 200-260 200-260 210-290 175-220 200-250 220-290 240-290 260-280 260-300 260-300 300-350 320-350
Operating Pressure (bar) 240-250 240-260 240-260 240-260 260-280 210 210 290-300 300-310 300-310 300-310 300-310 310-330 310-330
Relief Pressure (bar) 160-180 180-200 180-200 180-200 180-200 160-180 160-180 220-280 220-280 260-280 220-280 260-280 280-320 280-320
Impact Energy (J) 5423 6779 8812 10846 12202 5193 10388 14302 17088 19322 21360 23543 25632 27057
Impact Rate (bpm) 300-450 300-450 250-400 250-350 250-350 300-450 300-400 200-250 180-200 160-200 150-200 150-200 150-200 120-180
Hose Size (inch) 1 1-1/4 1-1/4 1-1/4 1-1/4 1 1-1/4 1-1/4 1-1/4 1-1/4 1-1/4 1-1/4 1-1/4 1-1/4
Noise Level (dB) 120 123 123 124 125 120 123 125 125 125 125 125 125 125
Chisel Dia. (mm) 150 155 165 165 175 150 160 185 195 195 200 205 210 220
Product Brochure

Download our catalog for details

Complete Range of Spare Parts Available
  • Back Head
  • Front Head
  • Breaker Cylinder
  • Through Bolt
  • Seal Kit
  • Diaphragm
  • Rod Pin
  • Lock Pin
  • Upper Bushing
  • Accumulator
  • Control Valve
  • Piston Ring
  • Chisel (Universal)
  • Thrust Bushing
  • Moil Chisel
  • Piston
  • V-Wedge Chisel
  • Universal Chisel
  • Flat Chisel
  • H-Wedge Chisel
  • Lower Bushing
  • Rubber Pad
  • Side Bolt
  • Charging Valve
  • Gas Charging Kit
  • Gas Bottle
