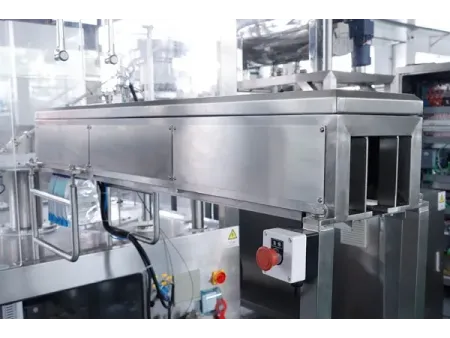

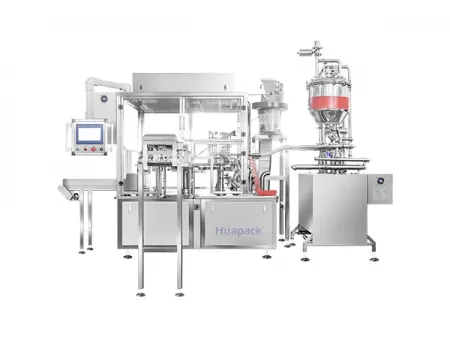

Spouted Pouch Filling and Capping Machine
The spouted pouch filling and capping machine is a compact, fully automatic solution developed for small to medium-scale production lines. It uses a new-generation servo control system to complete the full packaging sequence, including premade pouch positioning, accurate filling, vacuum processing, and intelligent cap tightening.
With a space-efficient layout, the spouted pouch handling machine fits well into plants with limited floor space. Optimized system design helps reduce energy consumption while maintaining stable operation and a high packaging success rate. This makes the pouch filling machine a practical option for manufacturers upgrading from manual or semi-automatic processes to automated spouted pouch packaging. It is widely used in food, personal care, and pet food applications where reliable performance, controlled investment, and consistent output are required.
| Model | ZGY-3000 |
| Max. pouch size (W × H) | 160mm×230mm |
| Maximum filling volume | 500ml |
| Packaging speed | ≤45 packs/min |
| Dimensions (L × W × H) | 2970mm×3300mm×2500mm |
| Net weight | 1500kg |
Zipper opening
Pouch hole punching
- Sombrero hole (butterfly hole)
- Round hole
- Special-shape punching
- Arc hole / Curved slot hole
- Euro hole
Coding options
- Hot stamp coding
- Inkjet printing
- Laser marking
Sealing patterns
- Grid pattern
- Dotted pattern
- Plain/flat pattern
- Vertical rib pattern
A personal care manufacturer in Shanghai introduced the spouted pouch filling and capping machine in 2025 to package 350 g to 500 g motorcycle tire sealant liquid. It has been operating reliably and meets the customer’s requirements for filling accuracy and stable pouch presentation.
