Continuous Rotary Spout Pouch Filling and Capping Machine
Request a Quote
Website: http://pouchpackmachine-en.com/continuous-rotary-spout-pouch-filling-capping-machine-4-2.html
High-Speed Spouted Pouch Filler & Capper
Pouch Style

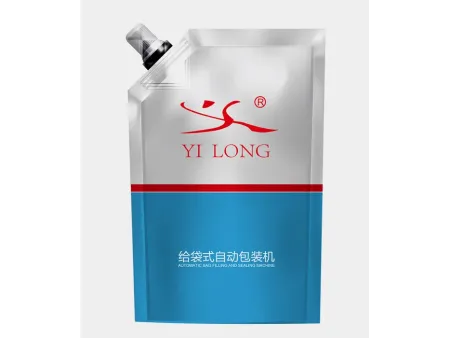

- Side Spout Bag

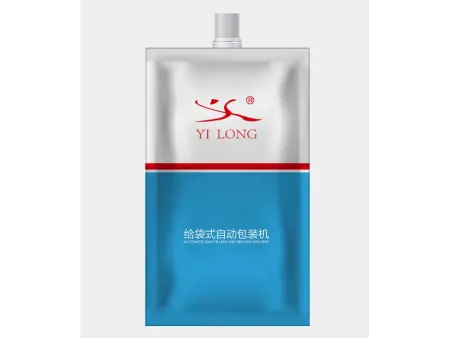

- Flat Spout Bag
- Stand-Up Spout Bag
- Shaped Spout Bag
- Quad Seal Spout Bag
Specifications
| Capacity | 240–300 pouches/min |
| Pouch size | Length: < 240 mm; Width: < 150 mm |
| Packing weight | 100–550 ml |
| Power consumption | 18 kW |
| Power supply | AC 3-phase 380V 50Hz / AC 3-phase 380V 50Hz |
| Compressed air | 0.6–0.7 MPa; 2.0 m³/min |
| Machine weight | 5000 kg |
| Pouch style | Corner spout pouch, flat spout pouch, stand-up spout pouch, shaped spout pouch, flat bottom spout pouch |
| Machine dimensions | Length: 3200 mm; Width: 2750 mm; Height: 3500 mm |
Features
- Premium Materials & Hygiene Standards
Constructed from stainless steel, with all product contact parts made of 304/316L stainless steel or other food-grade materials, the automatic pouch filler is designed to meet high hygienic standards and deliver corrosion resistance and a long service life. - User-Friendly Operation & Integration
Designed with PLC touch screen HMI for easy installation and simple operations. Can be integrated with user’s MES system. - Waste Prevention System
The packaging system synchronizes with weighing and dosing system to avoid material waste. No-Filling-No-Sealing function prevents pouches waste. - Superior Seal Quality
A specially designed sealing shaping station ensures the seals are flat and wrinkle-free. This keeps the pouch graphics intact, ensures high seal integrity, and results in an extremely low failure rate, leading to significant material savings. - Easy Maintenance and Convenient Inspection
The premade pouch packaging machine primarily utilizes mechanical transmission and oil-impregnated bearings, which reduce the number of lubrication points and simplify overall maintenance. - Minimized Material Loss
Wrinkle-free sealing preserves pouch graphics, ensures excellent seal quality, and minimizes the failure rate, thereby reducing packaging material loss.
