Automatic Swing Tray Proofing System
Request a Quote
Integrated Automated Bakery Production Solutions
From industrial bakery equipment to complete automated bakery lines
- Production Capacity: 300–2,000 trays
- Proofing Time: Adjustable from 100–300 minutes
- Applicable Products: Staple bread, specialty bread, hamburger, pizza, Chinese-style pastry, etc.
- Temperature & Humidity:
- Temperature: Adjustable 35–40 °C
- Humidity: 70–90% RH, non-condensing
- Temperature & Humidity Accuracy (steady state):
- Temperature: ±1 °C
- Humidity: ±2% RH
Request A Quote

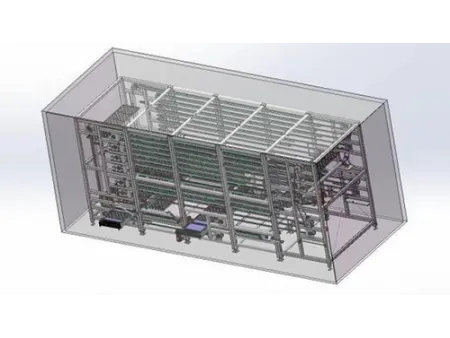

Structural Diagram

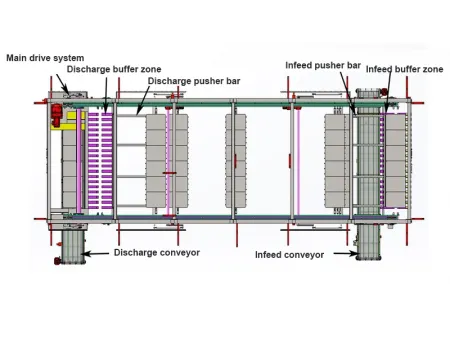

Process Flow
Main Components
The main components of the automatic swing tray proofing system include: main frame, main drive system, swing tray mechanism, pusher feeding system, pusher discharging system, circulating air system, heating and humidification system, control system, etc.
Main Frame
The main frame is fabricated from SUS304 stainless steel, welded, and assembled with a matte surface finish. Reinforced and thickened materials are used to ensure high rigidity, stability, and precision.
Main Drive System
- Features SEW geared motors with multi-layer balanced chain transmission
- Equipped with a rotary encoder with closed-loop precision position control
- Online load sensors for dynamic load detection prevent drive jamming
- Multi-layer chain balanced drive with independent tensioning mechanisms
- High-quality main drag chains from Universal offer high strength and long service life
- Innovative spring-based dynamic tension monitoring mechanism
- Automatic lubrication system, enabling real-time lubrication during operation
Swing Tray Mechanism
- Adopt a precision parallel swing structure with full stainless steel load-bearing trays
- Food-grade silicone anti-slip surface, ensuring hygiene and long service life
- Ensures products remain centered with uniform fermentation and no air bubbles
- Features a dual-end bearing support for stable, vibration-free operation
Integrated Air Handling & Heating/Humidification System
- Proofing chamber air enters the return air chamber and passes through a primary filter to remove large particles
- Heat exchanger connected to an external steam source heats air to 35–40 °C (adjustable per process requirements)
- Dry steam humidifier converts steam into dry steam for humidification, mixes with air, and removes condensate before supply
- Mixed air is delivered into the proofing chamber by axial flow fans
- Chamber air returns through ducts for continuous circulation
- Air ducts equipped with automatic dampers for fresh air intake and exhaust
- Air handling unit constructed with 100 mm polyurethane insulation panels, double-sided 0.6 mm SUS304 stainless steel, rounded joints, and waterproof treatment
- Accurate temperature and humidity control (based on display):
- Temperature: ±1 °C
- Humidity: ±2% RH (no visible water accumulation inside the chamber)
- Supports expansion with mobile and PC-based online monitoring, with built-in temperature and humidity data logging, uploading, and exporting functions
Components Information
| Component | Model / Specification | Brand |
| Main Frame | Custom SUS304 stainless steel (100 square tube, 50×100 flat tube, 120×4 angle steel) | T-Shine |
| Drive System | SEW geared motor | Germany |
| Bearings | NSK, SKF, NTN (high-temp & high-humidity types) | Japan |
| Cylinders | SMC | Japan |
| Swing Tray | Custom SUS304 stainless steel (⌀10 round bar, 60×3 square tube) | In-house |
| Circulating Fan | 2700 Pa Guangzhou Xinfeng fan; TECO motor AEEVYY 2–4 kW 4P; NSK bearings | China/Taiwan/Japan |
| Inverter | Mitsubishi FR-D740 | Japan |
| Steam Pressure Reducing Valve | Yoshitake 20A, GD-30, CAC (threaded) | Japan |
| Steam Heating & Humidification Control | V5011S2S020 ML742A8088-E | Honeywell, USA |
| Cooling Control | V5013N1055/U ML7420A8088-E | Honeywell, USA |
| Low-voltage Electrical Components | Schneider, OMRON | France/Japan |
| PLC Control System | Siemens S7-200 SMART | Germany |
| Touch Screen | Siemens SMART1000 | Germany |
