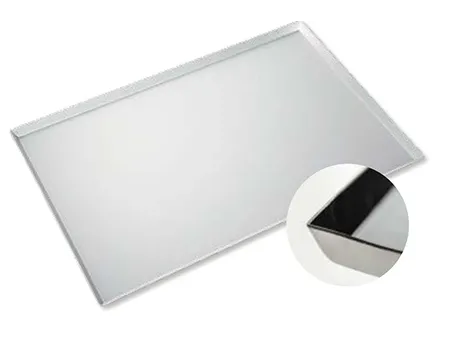

Flat Baking Tray

Flat Baking Tray
Flat Baking Tray
Flat Baking Tray
Request a Quote
Industrial Bakeware with 20 Years of Expertise

T-Shine specializes in the manufacturing of custom industrial baking pans for over 20 years. All our baking pans are made from commercial-grade materials and can be customized to your exact size and specification requirements. Surface treatments—including Non-stick Coatings, anodizing, and hard anodizing—are also fully customizable based on your specific application needs.

Request A Quote

Material Properties

The flat baking tray is available in aluminized steel, aluminum alloy, and stainless steel.

Aluminized Steel

Produced by hot-dip coating a low-carbon steel substrate with aluminum. This material combines the strength of steel with aluminum's excellent thermal conductivity and heat resistance, offering balanced performance at a competitive cost.

Stainless Steel

Stainless steel baking trays are made from alloy steel containing iron, chromium, nickel, and other elements, typically using food-grade 304 or 316 stainless steel. They are known for exceptional durability and corrosion resistance.

Aluminum Alloy

Fabricated by casting or rolling aluminum with elements like magnesium and silicon. To enhance pure aluminum’s softness and reactivity properties, surface treatments such as anodizing or Non-stick Coatings (e.g., PTFE) are typically applied.

Specifications

Model Surface Treatment Dimensions (L×W×H) Thickness Material & Structure Other Features

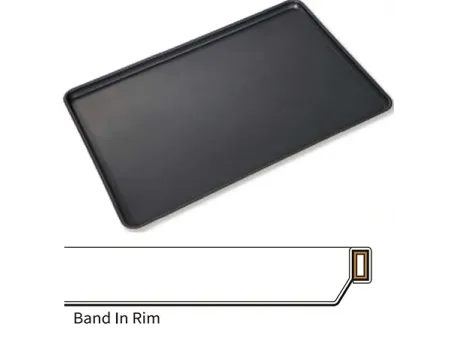

TS1044 PTFE 600×400×20 mm δ1.2 mm Al-alloy, Band In Rim -
TS1045 Anodized
TS1107 Hard Anodized
TS1047 PTFE ⌀3 mm Perforated
Model Surface Treatment Dimensions (L×W×H) Thickness Material & Structure Other Features
TS1070 PTFE 600×400×20 mm δ1.5 mm Al-alloy, Right Angle -
TS1071 Anodized ⌀3 mm
Perforated
TS1074 PTFE
TS1075 Anodized
TS1078 PTFE
Model Surface Treatment Dimensions (L×W×H) Thickness Material & Structure Other Features
TS1066 PTFE 600×400×20 mm δ1.5 mm Round Corner ⌀3 mm Perforated
TS1067 Anodized
TS1062 PTFE Corrugated
TS1063 Anodized
TS1058 PTFE -
TS1059 Anodized
TS1050 PTFE 600×400×12 mm
TS1051 Anodized
TS1090 PTFE 660×457×12 mm δ2.0 mm
TS1091 Anodized
TS1102 PTFE 660×457×14 mm
TS1103 Anodized
TS1093 PTFE 660×457×12 mm ⌀2 mm Perforated
TS1094 Anodized
TS1104 PTFE 660×457×14 mm
TS1105 Anodized
Model Surface Treatment Dimensions (L×W×H) Thickness Material & Structure
TS1008 PTFE 600×400×25 mm δ1.0 mm Al-alloy, Wire In Rim
TS1009 Anodized
TS1031 No Coating 660×458×25
TS1032 PTFE
TS1023 PTFE 600×400×25 δ1.2 mm
TS1024 Anodized δ1.2 mm
TS1037 No Coating 600×458×25 δ1.2 mm
TS1038 PTFE δ1.2 mm

Selection Chart

Customized Service
Flat Baking Tray Type
Flat rim (edgeless)
U-shaped rim
Three-side fold
Four-side fold
Material
Al-alloy Al-steel Stainless Steel
Thickness
0.8mm 1.0mm 1.2mm 1.5mm 2.0mm
Process
Main Frames
Fillet welding
No welding
Seamless forming
Edge
Flat rim
Wire in rim
Folded edge
Band in rim
Shape
Right angle
Bevel angle
Surface
Flat
Diamond form
Oblique corrugated
Normal Perforated
Custom Perforated
Coating
No coating T-ReXL PTFE Silicon Anodized Hard Anodized Electrolysis
