Industrial Bakeware with 20 Years of Expertise

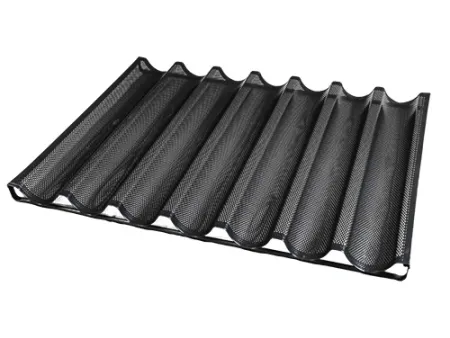

French bread pan

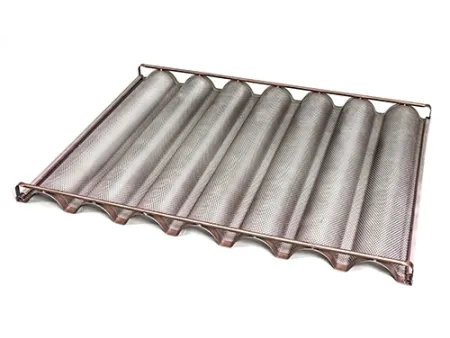

T-Shine baguette trays are available in multiple sizes and configurations. For larger sizes, a stainless steel reinforcement frame is available to provide exceptional rigidity and long-term structural stability for industrial use.

Request A Quote

Product Samples

Specifications

• Model: TS1638
• Surface Treatment: PTFE
• Dimensions (L×W×H): 600×400×36 mm
• No. of Molds: 4
• Materials: Al-alloy
• Thichness: δ1.0 mm
• Size Diagram:

• Model: TS1634
• Surface Treatment: PTFE
• Dimensions (L×W×H): 600×400×36 mm
• No. of Molds: 4
• Materials: Al-alloy
• Thichness: δ1.0 mm
• Size Diagram:

• Model: TS1636
• Surface Treatment: PTFE
• Dimensions (L×W×H): 600×400×30 mm
• No. of Molds: 4
• Materials: Al-alloy
• Thichness: δ1.0 mm
• Size Diagram:

• Model: TS1644
• Surface Treatment: PTFE
• Dimensions (L×W×H): 895×695×52.52 mm
• No. of Molds: 7
• Materials: Al-alloy
• Thichness: δ1.0 mm
• Size Diagram:

• Model: TS1639
• Surface Treatment: PTFE
• Dimensions (L×W×H): 600×400×36 mm
• No. of Molds: 5
• Materials: Al-alloy
• Thichness: δ1.0 mm
• Size Diagram:

• Model: TS1640
• Surface Treatment: PTFE
• Dimensions (L×W×H): 737×406×40 mm
• No. of Molds: 5
• Materials: Al-alloy
• Thichness: δ1.0 mm
• Size Diagram:

• Model: TS1635
• Surface Treatment: PTFE
• Dimensions (L×W×H): 600×400×36 mm
• No. of Molds: 5
• Materials: Al-alloy
• Thichness: δ1.0 mm
• Size Diagram:

• Model: TS1637
• Surface Treatment: PTFE
• Dimensions (L×W×H): 600×400×30 mm
• No. of Molds: 5
• Materials: Al-alloy
• Thichness: δ1.0 mm
• Size Diagram:

• Model: TS1642
• Surface Treatment: Silicon
• Dimensions (L×W×H): 577×477×50 mm
• No. of Molds: 5
• Materials: Al-alloy Stainless steel
• Size Diagram:

• Model: TS1643
• Surface Treatment: No coating
• Dimensions (L×W×H): 500×800×37 mm
• No. of Molds: 5
• Materials: Al-alloy Stainless steel
• Thickness: δ1.2 mm
• Size Diagram:

• Model: TS5221
• Surface Treatment: PTFE
• Dimensions (L×W×H): 600×400×29 mm
• No. of Molds: -
• Materials: Al-alloy Stainless steel
• Size Diagram:

Selection Chart

Customized Service

Baguette Tray Types

4 across

5 across

6 across

Material

Al-alloy

Thickness

1.0mm 1.2mm

Process

Main

• A. Overall length
• B. Overall width
• C. Height
• D. Edge width
• E. Row width
• F. Row height

Surface

Flat

Normal perforated

Corner Shape

Right angle

Filleted corner

Frame

Closed frame

Stainless steel frame

Two-side frame

Coating

No coating T-ReXL PTFE Silicon
