Ultrasonic split heat meter, 220 series (carbon steel, flange type) features a carbon steel made line. This helps it to maintain excellent physical and mechanical properties even working at high temperature.

Parameters

Line material: carbon steel
Connection type: flange type
Nominal diameter range: DN250-DN1000
Power supply: built-in lithium battery or DC240V+ built-in lithium battery

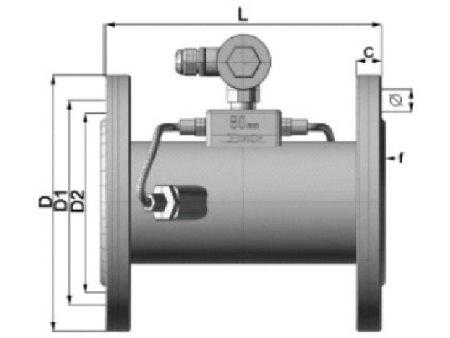

PN16-External dimension

Nominal diameter (mm)	Nominal pressure	Length L(mm)	Flange outer diameter D(mm)	Bolt circle diameter D1 (mm)	Bolt hole diameter X count	Sealing face D2	Height of sealing face f(mm)	Flange thickness C(mm)
250	1.6	450	405	355	26x12	320	3	29
300	1.6	500	460	410	26x12	378	4	32
350	1.6	550	520	470	26x16	438	4	35
400	1.6	600	580	525	30x16	490	4	38
450	1.6	700	640	585	30x20	550	4	42
500	1.6	800	715	650	33x20	610	4	46
600	1.6	1000	840	770	36x20	725	5	55
700	1.6	1100	910	840	36x24	795	5	63
800	1.6	1200	1025	950	39x24	900	5	74
900	1.6	1300	1125	1050	39x28	1000	5	82
1000	1.6	1400	1255	1170	42x28	1115	5	90

PN25-External dimension

Nominal diameter (mm)	Nominal pressure (Mpa)	Length L(mm)	Flange outer diameter D(mm)	Bolt circle diameter D1 (mm)	Bolt hole diameter X count	Sealing face D2	Height of sealing face f(mm)	Flange thickness C(mm)
250	2.5	450	425	370	30x12	335	3	35
300	2.5	500	485	430	30x16	395	4	38
350	2.5	550	555	490	33x16	450	4	42
400	2.5	600	620	550	36x16	505	4	48
450	2.5	700	670	600	36x20	555	4	54
500	2.5	800	730	660	36x20	615	4	58
600	2.5	1000	845	770	39x20	720	5	68
700	2.5	1100	960	875	42x24	820	5	85
800	2.5	1200	1085	990	48x24	930	5	95
