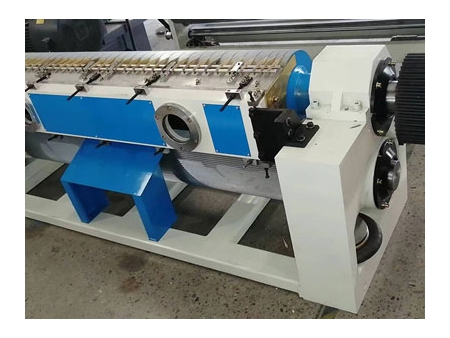

Single Facer with Cassette, SF-MW15
Request a Quote
Corrugated Board Manufacturing
| Design speed | 150m/min |
| Working speed | 120m/min |
| Temperature range | 160-200°C |
| Steam pressure | 0.8-1.3Mpa |
| Air pressure | 0.4-0.9MPa |
| Flute type | (UV or UVV) |
| Corrugator Roll Dia. | Ø320mm |
Features
- Cassette type single facer provides quick flute change;
- Paper feeding is carried out by using vacuum absorption method, a high-pressure blower is equipped to ensure the stable corrugation process at high speed;
- The width of groove on lower corrugating roll is less than 2mm, efficiently preventing the marks of stripes on corrugated cardboard;
- Universal joint transmission system is adopted to reduce vibration, enabling the operation more stable and reliable;
- Reduction gearbox is designed with oil-immersed lubrication to lower the machine vibration;
- Automatic glue feeding, pneumatic control of glue application and return can provide cushion effect;
- Engraved glue applicator roll is chrome plated;
- Upper and lower corrugating rolls are made of 48CrMo high grade alloy steel;
- Tungsten carbide or alloy steel can be used as the material of corrugator roll;
