Faux Fur Warp Knitting Machine
Request a Quote

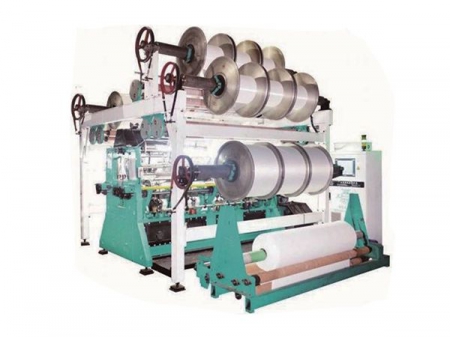

GE288-IIA Raschel Machine
Double needle bar raschel knitting machine for producing faux fur fabrics
Applications
Faux fur fabrics, and other artificial fur fabrics
Features
- Faux fur warp knitting machine uses an oil immersed cam-linkage mechanism.
- The warp knitting machine comes with a knock-over comb bar.
- The spacer fabric warp knitting machine features an easy operation sinker system, allowing automatically adjusting of the distance between knocking over bar, and the ground bar.
- Raschel warp knitting machine utilizes synchronous belt drive for electronic yarn let-off and electronic fabric take-up.
- The plush has a pile height of 50-200mm.
Specifications
- Needle type Individual latch needle
- Gauge E16, E18
- Number of bars 5 bars
- Working width 90"/100"/110"
- Max. speed 180-350 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| 3700×6050×3750 | 22.4 | 8000 | 11 | |
| 4000×6050×3750 | 24.2 | 8500 | 11 | |
| 4350×6050×3750 | 26.3 | 9350 | 11 |
