Applications
The high pressure spray dryer has a variety of different applications, most commonly food and medicine production.
Food Industry: Fatty milk powder, protein, cocoa milk powder, milk powder substitute, oats, coffee, soybeans, peanut protein, sugar, corn syrup, corn starch, glucose, pectin, malt sugar, sorbic acid potassium, etc.
Medicine: Traditional Chinese medicine extract, ointments, yeast, vitamin, antibiotic, amylase, lipase, etc.

Parameters
Specification 50 100 150 200 300 500 1000
Drying capacity kg/h 50 100 150 200 300 500 1000
Overall dimension(ф*H) mm 1600×8900 2000×11500 2400×13500 2800×14800 3200×15400 3800×18800 4600×22500
Pressure of high-pressure pump /Mpa 2-10
Power /kw 8.5 14 22 24 30 82 30
Temperature of inlet air /℃ 300-350
Water content in product % Less than or equal to 5 %
Collection rate /% >97
Electric power KW 75 120 150 When the temperature is lower than 200℃, parameters should be calculated according to the actual condition.
Steam and electric heater / Mpa KW 0.5 54 0.6 90 0.6 108
Heat capacity of hot air furnace Kcal/h 100000 150000 200000 300000 400000 500000 1200000
Flow chart

1. Liquid material inlet
2. Dry tower
3. Pressure nozzle dry system
4. Dust collector
5. Cyclone separator
6. Discharge port

Features
1. The material is sprayed into a fine mist through the nozzle on the top of tower. Heated air is then introduced to evaporate the moisture. Because of its speed of evaporation, the spray dryer is suitable for heat sensitive materials.
2. Because of different products having different drying technologies and particle rules, there is no single type of spray drying machine that meet all of the different requirements. However, we design our equipment to be as compatible as possible with all relevant industrial standards.

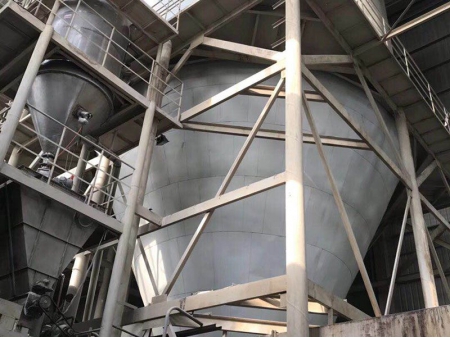

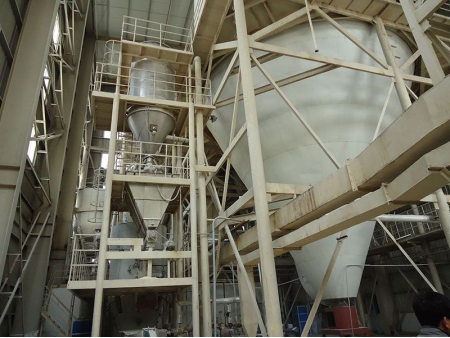

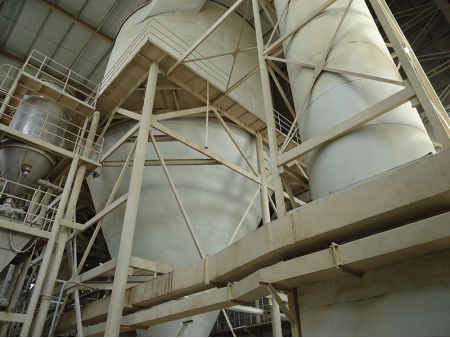

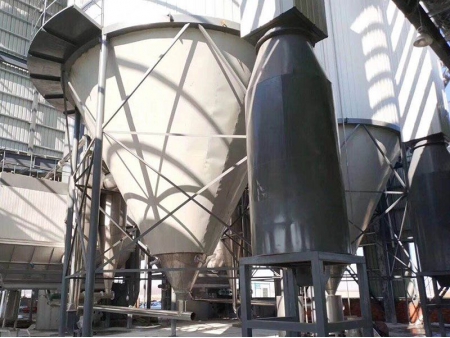

Detailed Images
