Rubber Ram Extruder, JYZ Series
Request a Quote
Suitable for the production of electrically conductive silicone rubber tubing & strips

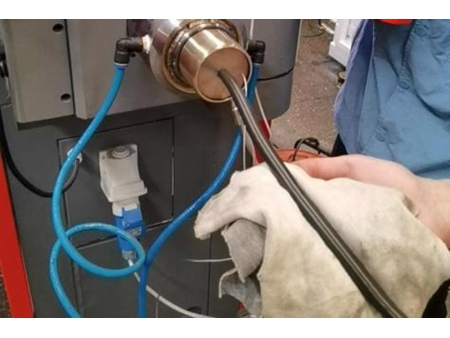

The JYZ series rubber ram extruder is specially designed to produce silica gel conductive tubes and conductive strips. This rubber extruder uses a ram to extrude the rubber, with a heating ring placed in front of the die to conduct vulcanization while extruding. When two of these rubber extruders are used at once, materials can be combined to create a composite double-material tube with both conductive and non-conductive adhesives. In order to ensure consistent quality control, extrusion speed is managed through precise quantifying.
Advantages
- The speed for extrusion is held constant and the quality is maintained without manual monitoring. This provides a reliable and consistent outcome.
- The precise rate of extrusion is visible and can be adjusted freely.
Specification
| Items | Unit | JYZ80 | JYZ100 |
| Barrel inner diameter | mm | 80 | 100 |
| Main power | Kw | 2 | 2 |
| Vulcanization power | Kw | 1.6 | 1.6 |
| Max. extruding pressure | Mpa | 35 | 35 |
| Vulcanization tempurature | ℃ | 350 | 350 |
| Extrusion accuracy | ％ | ±1.0 | ±1.0 |
| Single feeding volume | L | 2 | 5 |
| External dimension (L*W*H) | m | 1.75×0.76×1.7 | 2.9×1.2×1.7 |
| Weight | t | 1.2 | 2.2 |
| Cooling water flow | L/min | 10 | 10 |
