90 Degree Stainless Steel Angle Valve
Request a Quote
90 Degree Stainless Steel Angle Valve, SSFV-3
- Fuel Supply/Drain Valve
- 304 Stainless steel body（body surface be passivated）
- Nickel plated steel T handle, with black vinyl cover
- Ring seal components must conform to JDS 38
- PTFE ball seats and Viton sealing
- Maximum Pressure：2000PSI
- Temp Range:-40℃-120℃
- 3/4"-16UNF-2A x 13/16"-16UN-2A
- DEF compatibility per ISO22241
- Biodiesel compatibility per JDS-D85
- Cleanliness per JDG-G169 class 6.6 visibly clean
- Ends to be capped
- Valve to be shipped in open position

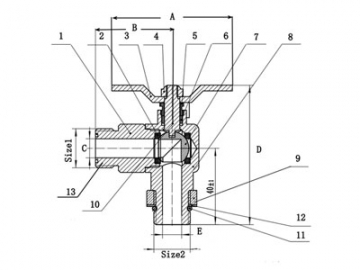

| Part No. | Size1 | Size2 | A(In) | B(In) | C(In) | D(In) | E(In) | Carton Qty. | Wt. (lbs.) |
| SSFV-3 | 13/16-16UN-2A | 3/4-16UNF-2A | 2.48 | 1.57 | 0.37 | 2.87 | 0.37 | 60 | 0.57 |
| Part No. | Description | Material |
| 1 | Male Cap | 304 Stainless |
| 2 | Ball seats | PTFE |
| 3 | T-handle | 304 Stainless |
| 4 | M6 Nut | 304 Stainless |
| 5 | Gland | 304 Stainless |
| 6 | Packing | PTFE |
| 7 | 90° Ball | 304 Stainless |
| 8 | Body | 304 Stainless |
| 9 | Lock Nut | 304 Stainless |
| 10 | Stem | 304 Stainless |
| 11 | O Ring | FKM (Viton) |
| 12 | Back Washer | 304 Stainless |

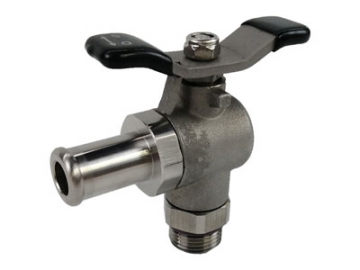

90° Stainless Steel Angle Valve, SSFV-1
- Valve Fuel Supply/Drain Valve
- 304 Stainless steel body（body surface be passivated）
- Nickel plated steel T handle, with black vinyl cover
- PTFE ball seats and Viton sealing
- Maximum Pressure：2000PSI
- Temp Range:-40℃-120℃
- 7/8-14UNF x 5/8" ID
- DEF compatibility per ISO22241
- Biodiesel compatibility per JDS-G253
- Cleanliness per JDG-G169 class 6.6
- Ends to be capped

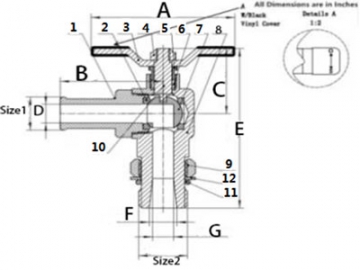

| Part No. | Size1 | Size2 | A(In) | B(In) | C(In) | D(In) | E(In) | F(In) | G(In) | Carton Qty. | Wt. (lbs.) |
| SSFV-1 | 5/8" | 7/8-14UNF | 2.48 | 1.83 | 1.30 | 0.37 | 3.19 | 0.49 | 0.37 | 60 | 0.59 |
| Part No. | Description | Material |
| 1 | Nipple | 304 Stainless |
| 2 | Ball seats | PTFE |
| 3 | T-handle | Carbon Steel（Nickel-Plated） |
| 4 | M6 Nut | 304 Stainless |
| 5 | Gland | 304 Stainless |
| 6 | Packing | PTFE |
| 7 | 90° Ball | 304 Stainless |
| 8 | Body | 304 Stainless |
| 9 | Lock Nut | 304 Stainless |
| 10 | Stem | 304 Stainless |
| 11 | O Ring | Viton |
| 12 | Back Washer | 304 Stainless |
