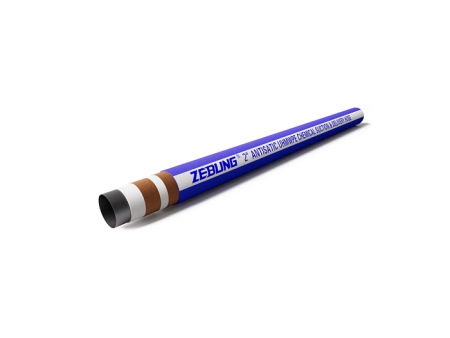

UHMWPE Chemical Anti-static Suction and Discharge Hose
- Inner tube: Conductive UHMWPE combined with EPDM rubber (Tensile strength ≥13MPa)
- Reinforcement layer: Fabric cord wrapping and spiral steel wire
- Outer cover: EPDM rubber (Tensile strength ≥13MPa)
- Appearance: Flat or corrugated
- Operating temperature: -40°C to 90°C
- Safety factor: 3:1
- Color: Available in various colors such as black and blue.
Features
Featuring a conductive inner lining of ultra-high molecular weight polyethylene, our hose efficiently dissipates static electricity while offering robust corrosion resistance. The EPDM rubber used in both inner and outer layers’ boasts outstanding heat resistance and anti-aging properties, ensuring ease of handling due to its lightweight nature. Designed for long-term use across various working conditions, this hose guarantees reliable performance.
Applications
Utilized for transporting corrosive substances such as strong acids and alkalis, it finds primary application across industries including renewable energy, food, and pharmaceuticals.
Technical Parameters
| Item Code | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Weight | Max. Length | |||
| mm | inch | mm | bar | psi | bar | psi | kg/m | m | |
| ASCHSD019-150 | 19 | 3/4" | 31.2 | 10 | 150 | 30 | 450 | 0.63 | 40 |
| ASCHSD025-150 | 25 | 1" | 37.2 | 10 | 150 | 30 | 450 | 0.78 | 40 |
| ASCHSD032-150 | 32 | 1-1/4" | 44.6 | 10 | 150 | 30 | 450 | 0.96 | 40 |
| ASCHSD038-150 | 38 | 1-1/2" | 51.6 | 10 | 150 | 30 | 450 | 1.21 | 40 |
| ASCHSD045-150 | 45 | 1-3/4" | 58.6 | 10 | 150 | 30 | 450 | 1.40 | 40 |
| ASCHSD051-150 | 51 | 2" | 64.6 | 10 | 150 | 30 | 450 | 1.56 | 40 |
| ASCHSD057-150 | 57 | 2-1/4" | 70.6 | 10 | 150 | 30 | 450 | 1.72 | 40 |
| ASCHSD064-150 | 64 | 2-1/2" | 78.6 | 10 | 150 | 30 | 450 | 2.19 | 40 |
| ASCHSD076-150 | 76 | 3" | 90.6 | 10 | 150 | 30 | 450 | 2.56 | 40 |
| ASCHSD102-150 | 102 | 4" | 117.4 | 10 | 150 | 30 | 450 | 3.34 | 40 |
| ASCHSD152-150 | 152 | 6" | 171.8 | 10 | 150 | 30 | 450 | 7.62 | 40 |
| ASCHSD019-230 | 19 | 3/4" | 31.2 | 16 | 230 | 48 | 690 | 0.63 | 40 |
| ASCHSD025-230 | 25 | 1" | 37.2 | 16 | 230 | 48 | 690 | 0.78 | 40 |
| ASCHSD032-230 | 32 | 1-1/4" | 44.6 | 16 | 230 | 48 | 690 | 0.96 | 40 |
| ASCHSD038-230 | 38 | 1-1/2" | 52 | 16 | 230 | 48 | 690 | 1.26 | 40 |
| ASCHSD045-230 | 45 | 1-3/4" | 59 | 16 | 230 | 48 | 690 | 1.46 | 40 |
| ASCHSD051-230 | 51 | 2" | 65 | 16 | 230 | 48 | 690 | 1.62 | 40 |
| ASCHSD057-230 | 57 | 2-1/4" | 71 | 16 | 230 | 48 | 690 | 1.80 | 40 |
| ASCHSD064-230 | 64 | 2-1/2" | 79.4 | 16 | 230 | 48 | 690 | 2.19 | 40 |
| ASCHSD076-230 | 76 | 3" | 91.4 | 16 | 230 | 48 | 690 | 2.56 | 40 |
| ASCHSD102-230 | 102 | 4" | 120.2 | 16 | 230 | 48 | 690 | 4.01 | 40 |
| ASCHSD152-230 | 152 | 6" | 175 | 16 | 230 | 48 | 690 | 8.80 | 40 |
| ASCHSD019-300 | 19 | 3/4" | 31.2 | 20 | 300 | 60 | 900 | 0.63 | 40 |
| ASCHSD025-300 | 25 | 1" | 37.6 | 20 | 300 | 60 | 900 | 0.78 | 40 |
| ASCHSD032-300 | 32 | 1-1/4" | 46.6 | 20 | 300 | 60 | 900 | 1.21 | 40 |
| ASCHSD038-300 | 38 | 1-1/2" | 53.4 | 20 | 300 | 60 | 900 | 1.40 | 40 |
| ASCHSD045-300 | 45 | 1-3/4" | 60.4 | 20 | 300 | 60 | 900 | 1.61 | 40 |
| ASCHSD051-300 | 51 | 2" | 66.4 | 20 | 300 | 60 | 900 | 1.79 | 40 |
| ASCHSD057-300 | 57 | 2-1/4" | 72.4 | 20 | 300 | 60 | 900 | 1.98 | 40 |
| ASCHSD064-300 | 64 | 2-1/2" | 82.2 | 20 | 300 | 60 | 900 | 2.64 | 40 |
| ASCHSD076-300 | 76 | 3" | 94.2 | 20 | 300 | 60 | 900 | 3.07 | 40 |
| ASCHSD102-300 | 102 | 4" | 121.4 | 20 | 300 | 60 | 900 | 4.40 | 40 |
| ASCHSD152-300 | 152 | 6" | 175.4 | 20 | 300 | 60 | 900 | 9.02 | 40 |
Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.
