Description

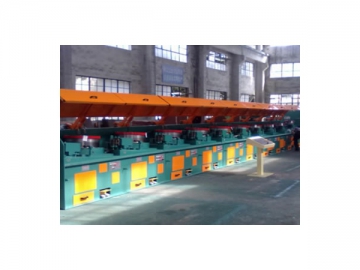

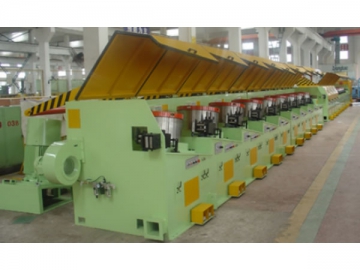

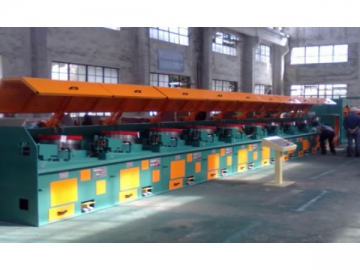

The straight line steel wire drawing machine is a heavy duty wire drawing machine, engineered for the drawing of high strength, high performance steel wire. This drawing equipment is suitable for bead wire, rope making wire, stainless steel wire, alloy wire, etc.
Our steel drawing machinery has a whole list of functions including an advanced user interface and a highly reliable motor overheating protection device.

Technical Process
Pay-off → Shell cleaning (pre-processing)→ Wire rod pointing → (Buttering) → Drawing wire → Take-up (spool or trunk take-up).

Layout

Main Characteristics
Reliability: Field bus technology is used for the electrical control system for stable and reliable operation.

Energy saving
It adopts an AC frequency regulator dragging which can reduce impact caused by the motor starting.
High efficiency: The straight line steel wire drawing machine greatly reduces the failure rate of the products

Main Parameters
Type 300 350 400 450 500 560 600 700 800
Inlet wire strength (mpa) ≤1250
Drawing Passes 2-11 2-11 2-11 2-12 2-12 2-12 2-12 2.9 2.9
Max inlet diameter (mm) 2.8 3.5 4.2 5.0 5.5 6.5 8 10 12.7
Min inlet diameter (mm) 0.5 0.6 0.75 1.0 1.2 1.1 1.6 2.2 2.6
Max speed (m/s) -25 -20 -20 -16 -15 -15 -12 -12 -8
Power (KW) 7.5-18.5 11-22 11-30 15-37 22-45 22-55 30-75 45-90 55-110
Drawing materials Steel wire(high, medium, low carbon wire, stainless steel wire, prestressed wire, bead wire, rubber tube wire, spring steel wire, steel cord steel wire etc.) welding wire(gas shielded welding wire, submerged arc welding wires, flux-cored wire etc.) alloy wire etc.
