Utility Tractor, 65-75HP
Request a Quote
YTO-EF654/EF704/EF754
Features
- This series of tractors feature nice-looking appearance, the versatile front end and excellent performance in field chores and transportation;
- The diesel engine made by YTO produces large torque reserve and strong power with low fuel consumption;
- 12F/12R gears enable fast and smooth gear shift;
- Clutches produced by LUK separately control wheels and PTO and they are durable and reliable;
- The heavy-duty front axle enables high driven force while keeping traction force;
- The hydraulic disc brake results in easy-to-control feel as it offers strong stopping power;
- We provide tractors with an enclosed cab or an open station and an optional air conditioner.

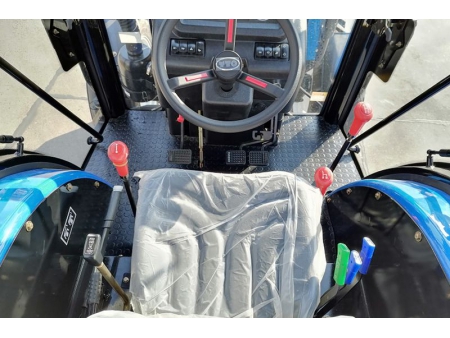

- Enclosed cab
- 12F/12R Gears
- Heavy-duty front axle
- Double cylinder auxiliary
Specifications
| Model (with ROPS) | EF654 | EF704 | EF754 |
| Engine type | Naturally aspirated 4-cylinder diesel engine | ||
| Rated engine HP (kW) | 47.8 (65) | 51.5 (70) | 55.2 (75) |
| Engine speed (rpm) | 2200 | ||
| Clutch | Independent, double action | ||
| Gears | 12F/12R | ||
| Speed range (km/h) | 2.77-35.54 | ||
| Brake | Wet, disc | ||
| Rear PTO (rpm) | 540/1000 | ||
| Lift capacity (pivot point) (kN) | ≥17.3 | ||
| Hydraulic multiplier (set) | 1 or 2 | ||
| Dimensions (L*W*H) (mm) | 4050*1860*2580 | ||
| Wheelbase (mm) | 2140 | ||
| Ground clearance (mm) | 390 | ||
| Min. turning radius (m) | 4.5±0.3 | ||
| Wheel track (F/R) (mm) | 1450 /1420, 1520, 1620 | ||
| Tyre (F/R) | 9.5-24/14.9-30 | ||
| Min. operating mass (kg) | 2850 | ||
