Solid Carbide Drills 3xD, DIN 6537, without Coolant Holes

Solid Carbide Drills 3xD, DIN 6537, without Coolant Holes
Solid Carbide Drills 3xD, DIN 6537, without Coolant Holes
Solid Carbide Drills 3xD, DIN 6537, without Coolant Holes
Request a Quote
View All: http://metalworking-tool.com/9-5-emh05-solid-carbide-drills-3xd-din-6537.html
  • Solid carbide dream drills for high-speed drilling on general steel, tool steel, cast steel, cast iron, malleable cast iron, chilled cast iron, titanium, non-ferrous heavy metal, abrasive plastic, etc.
  • Special twister flute, self-centering and excellent performance
  • Efficient chip removal during the machining of soft and hard metal
  • Imported raw materials offer excellent tool life

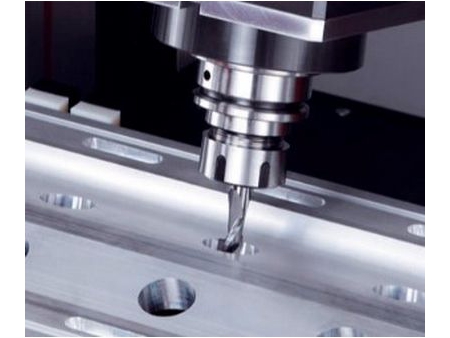

Application
Product Specifications
Coating AITiN /TiALN /TiSiN/TiN HRC HRC35/45/55
Helix Angle 30° Shank Cylindrical H6
Point Angle 140° Tolerance on Cutting Diameter 0-0.030
High Speed Steel Drills without Coolant Hole, 3D (UNT-EMH05 )
Unit: mm
UNT EDP # Click to Order Mill Dia.
D1 		Flute Length
L1 		O.A.L.
L2 		Shank Dia.
D2 		Shank Length
EMH05030 3.0 20 62 6 36
EMH05031 3.1 20 62 6 36
EMH05032 3.2 20 62 6 36
EMH05033 3.3 20 62 6 36
EMH05034 3.4 20 62 6 36
EMH05035 3.5 20 62 6 36
EMH05036 3.6 20 62 6 36
EMH05037 3.7 20 62 6 36
EMH05038 3.8 24 66 6 36
EMH05039 3.9 24 66 6 36
EMH05040 4.0 24 66 6 36
EMH05041 4.1 24 66 6 36
EMH05042 4.2 24 66 6 36
EMH05043 4.3 24 66 6 36
EMH05044 4.4 24 66 6 36
EMH05045 4.5 24 66 6 36
EMH05046 4.6 24 66 6 36
EMH05047 4.7 24 66 6 36
EMH05048 4.8 28 66 6 36
EMH05049 4.9 28 66 6 36
EMH05050 5.0 28 66 6 36
EMH05051 5.1 28 66 6 36
EMH05052 5.2 28 66 6 36
EMH05053 5.3 28 66 6 36
EMH05054 5.4 28 66 6 36
EMH05055 5.5 28 66 6 36
EMH05056 5.6 28 66 6 36
EMH05057 5.7 28 66 6 36
EMH05058 5.8 28 66 6 36
EMH05059 5.9 28 66 6 36
EMH05060 6.0 28 66 6 36
EMH05061 6.1 34 79 8 36
EMH05062 6.2 34 79 8 36
EMH05063 6.3 34 79 8 36
EMH05064 6.4 34 79 8 36
EMH05065 6.5 34 79 8 36
EMH05066 6.6 34 79 8 36
EMH05067 6.7 34 79 8 36
EMH05068 6.8 34 79 8 36
EMH05069 6.9 34 79 8 36
EMH05070 7.0 34 79 8 36
EMH05071 7.1 41 79 8 36
EMH05072 7.2 41 79 8 36
EMH05073 7.3 41 79 8 36
EMH05074 7.4 41 79 8 36
EMH05075 7.5 41 79 8 36
EMH05076 7.6 41 79 8 36
UNT EDP # Click to Order Mill Dia.
D1 		Flute Length
L1 		O.A.L.
L2 		Shank Dia.
D2 		Shank Length
EMH05077 7.7 41 79 8 36
EMH05078 7.8 41 79 8 36
EMH05079 7.9 41 79 8 36
EMH05080 8.0 41 79 8 36
EMH05081 8.1 47 89 10 40
EMH05082 8.2 47 89 10 40
EMH05083 8.3 47 89 10 40
EMH05084 8.4 47 89 10 40
EMH05085 8.5 47 89 10 40
EMH05086 8.6 47 89 10 40
EMH05087 8.7 47 89 10 40
EMH05088 8.8 47 89 10 40
EMH05089 8.9 47 89 10 40
EMH05090 9.0 47 89 10 40
EMH05091 9.1 47 89 10 40
EMH05092 9.2 47 89 10 40
EMH05093 9.3 47 89 10 40
EMH05094 9.4 47 89 10 40
EMH05095 9.5 47 89 10 40
EMH05096 9.6 47 89 10 40
EMH05097 9.7 47 89 10 40
EMH05098 9.8 47 89 10 40
EMH05099 9.9 47 89 10 40
EMH05100 10.0 47 89 10 40
EMH05102 10.2 55 102 12 12
EMH05105 10.5 55 102 12 12
EMH05108 10.8 55 102 12 12
EMH05110 11.0 55 102 12 12
EMH05115 11.5 55 102 12 12
EMH05120 12.0 55 102 12 12
EMH05125 12.5 60 107 14 14
EMH05130 13.0 60 107 14 14
EMH05135 13.5 60 107 14 14
EMH05140 14.0 60 107 14 14
EMH05145 14.5 65 115 16 16
EMH05150 15.0 65 115 16 16
EMH05155 15.5 65 115 16 16
EMH05160 16.0 65 115 16 16
EMH05165 16.5 73 123 18 18
EMH05170 17.0 73 123 18 18
EMH05175 17.5 73 123 18 18
EMH05180 18.0 73 123 18 18
EMH05185 18.5 79 131 20 20
EMH05190 19.0 79 131 20 20
EMH05195 19.5 79 131 20 20
EMH05200 20.0 79 131 20 20

• Carbide drills with non-standard sizes or specifications not listed above can be customized according to customer needs.
