Solid Carbide Drills 3xD, DIN 6537, with Coolant Holes

Solid Carbide Drills 3xD, DIN 6537, with Coolant Holes
Solid Carbide Drills 3xD, DIN 6537, with Coolant Holes
Solid Carbide Drills 3xD, DIN 6537, with Coolant Holes
Request a Quote
View All: http://metalworking-tool.com/9-6-emh06-solid-carbide-drills-3xd-din-6537.html
  • Solid carbide drills for high-speed drilling on general steel, tool steel, cast steel, cast iron, malleable cast iron, chilled cast iron, titanium, non-ferrous heavy metal, abrasive plastic, etc.
  • Special twister flute, self-centering and excellent performance
  • Efficient chip removal during the machining of soft and hard metal
  • Imported raw materials offer excellent tool life

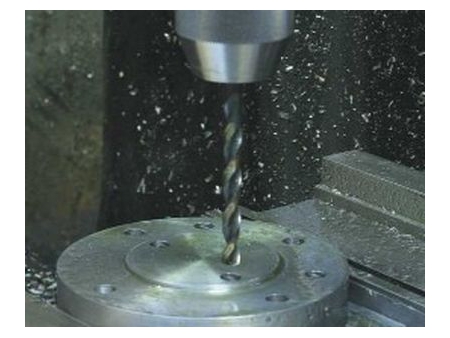

Application
Product Specifications
Coating AITiN /TiALN /TiSiN/TiN HRC HRC35/45/55
Helix Angle 30° Shank Cylindrical H6
Point Angle 140.° Tolerance on Cutting Diameter 0-0.030
High Speed Steel Drills With Coolant Hole, 3D (UNT-EMH06 ), Unit: mm
Unit: mm
UNT EDP # Click to Order Mill Dia.
D1 		Flute Length
L1 		O.A.L.
L2 		Shank Dia.
D2 		Shank Length
EMH06030 3.0 20 62 6 36
EMH06031 3.1 20 62 6 36
EMH06032 3.2 20 62 6 36
EMH06033 3.3 20 62 6 36
EMH06034 3.4 20 62 6 36
EMH06035 3.5 20 62 6 36
EMH06036 3.6 20 62 6 36
EMH06037 3.7 20 62 6 36
EMH06038 3.8 24 66 6 36
EMH06039 3.9 24 66 6 36
EMH06040 4.0 24 66 6 36
EMH06041 4.1 24 66 6 36
EMH06042 4.2 24 66 6 36
EMH06043 4.3 24 66 6 36
EMH06044 4.4 24 66 6 36
EMH06045 4.5 24 66 6 36
EMH06046 4.6 24 66 6 36
EMH06047 4.7 24 66 6 36
EMH06048 4.8 28 66 6 36
EMH06049 4.9 28 66 6 36
EMH06050 5.0 28 66 6 36
EMH06051 5.1 28 66 6 36
EMH06052 5.2 28 66 6 36
EMH06053 5.3 28 66 6 36
EMH06054 5.4 28 66 6 36
EMH06055 5.5 28 66 6 36
EMH06056 5.6 28 66 6 36
EMH06057 5.7 28 66 6 36
EMH06058 5.8 28 66 6 36
EMH06059 5.9 28 66 6 36
EMH06060 6.0 28 66 6 36
EMH06061 6.1 34 79 8 36
EMH06062 6.2 34 79 8 36
EMH06063 6.3 34 79 8 36
EMH06064 6.4 34 79 8 36
EMH06065 6.5 34 79 8 36
EMH06066 6.6 34 79 8 36
EMH06067 6.7 34 79 8 36
EMH06068 6.8 34 79 8 36
EMH06069 6.9 34 79 8 36
EMH06070 7.0 34 79 8 36
EMH06071 7.1 41 79 8 36
EMH06072 7.2 41 79 8 36
EMH06073 7.3 41 79 8 36
EMH06074 7.4 41 79 8 36
EMH06075 7.5 41 79 8 36
EMH06076 7.6 41 79 8 36
UNT EDP # Click to Order Mill Dia.
D1 		Flute Length
L1 		O.A.L.
L2 		Shank Dia.
D2 		Shank Length
EMH06077 7.7 41 79 8 36
EMH06078 7.8 41 79 8 36
EMH06079 7.9 41 79 8 36
EMH06080 8.0 41 79 8 36
EMH06081 8.1 47 89 10 40
EMH06082 8.2 47 89 10 40
EMH06083 8.3 47 89 10 40
EMH06084 8.4 47 89 10 40
EMH06085 8.5 47 89 10 40
EMH06086 8.6 47 89 10 40
EMH06087 8.7 47 89 10 40
EMH06088 8.8 47 89 10 40
EMH06089 8.9 47 89 10 40
EMH06090 9.0 47 89 10 40
EMH06091 9.1 47 89 10 40
EMH06092 9.2 47 89 10 40
EMH06093 9.3 47 89 10 40
EMH06094 9.4 47 89 10 40
EMH06095 9.5 47 89 10 40
EMH06096 9.6 47 89 10 40
EMH06097 9.7 47 89 10 40
EMH06098 9.8 47 89 10 40
EMH06099 9.9 47 89 10 40
EMH06100 10.0 47 89 10 40
EMH06102 10.2 55 102 12 12
EMH06105 10.5 55 102 12 12
EMH06108 10.8 55 102 12 12
EMH06110 11.0 55 102 12 12
EMH06115 11.5 55 102 12 12
EMH06120 12.0 55 102 12 12
EMH06125 12.5 60 107 14 14
EMH06130 13.0 60 107 14 14
EMH06135 13.5 60 107 14 14
EMH06140 14.0 60 107 14 14
EMH06145 14.5 65 115 16 16
EMH06150 15.0 65 115 16 16
EMH06155 15.5 65 115 16 16
EMH06160 16.0 65 115 16 16
EMH0615 16.5 73 123 18 18
EMH06170 17.0 73 123 18 18
EMH06175 17.5 73 123 18 18
EMH06180 18.0 73 123 18 18
EMH06185 18.5 79 131 20 20
EMH06190 19.0 79 131 20 20
EMH06195 19.5 79 131 20 20
EMH06200 20.0 79 131 20 20

• Carbide drills with non-standard sizes or specifications not listed above can be customized according to customer needs.

Related products
Solid Carbide Drills 3xD, DIN 6537, without Coolant Holes
Solid Carbide Drills 3xD, DIN 6537, without Coolant Holes

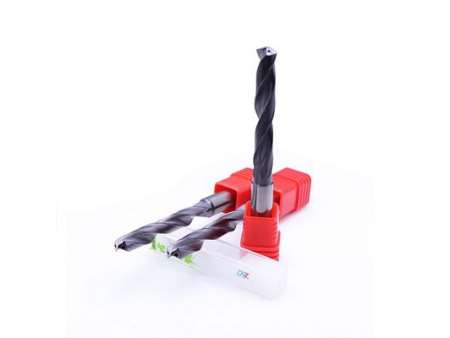

Solid Carbide Drill, with Coolant Holes, DIN6537
Solid Carbide Drill, with Coolant Holes, DIN6537
Solid Carbide Drills, DIN 338
Solid Carbide Drills, DIN 338

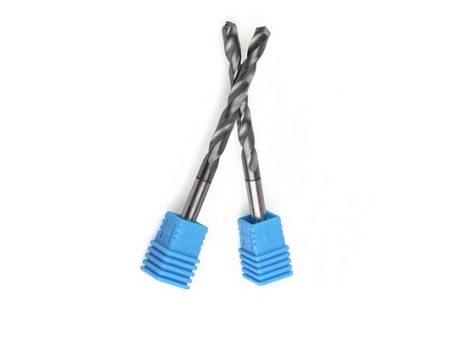

Solid Carbide Drill, 5xD, DIN6537, without Coolant Holes
