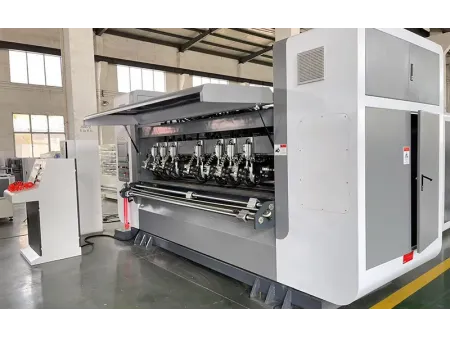

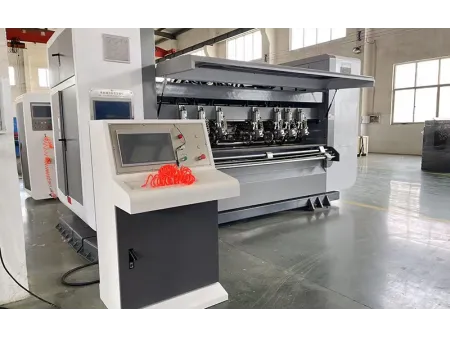

Thin Blade Slitter Scorer Machine
Request a Quote
Individual Machines for Corrugated Board Manufacturing
Slitting and scoring section for high-precision cutting and creasing of corrugated board
The thin blade slitter scorer machine serves as the finishing equipment in a corrugated board production line, primarily responsible for slitting, trimming, and scoring operations.
- Blade lifespan exceeds 8 million meters
- Alignment travel reaches 200 mm
- Slitting accuracy up to ±0.5 mm
Features
- Equipped with a touchscreen and PLC control system, enabling real-time linkage with the production line for intelligent management.
- Utilizes linear guides and a helical transmission structure to ensure consistent slitting and scoring accuracy.
- Supports order memory and automatic order change, allowing 1-3 second job switching with minimal downtime.
- Thin alloy steel blades provide long durability over 8 million meters and support both automatic and manual sharpening modes.
- Offers multiple scorer configurations and a minimum scoring distance of 0 mm to accommodate diversified board-scoring requirements.
- Standard motorized lateral alignment system with a 200 mm travel range enhances operational flexibility.
- Optional variable-frequency or servo control systems, with the servo model delivering higher speed and improved precision.
Technical Specifications
| Board width, mm | 1400-2500 |
| Speed, m/min | 100-200 |
| Blade & scorer configuration | 5&8, 6&10, 7&12 |
| Order change time | 1-3s (servo type) |
| Precision, mm | ±0.5 |
| Min. slitting distance, mm | 135 |
| Min. scoring distance, mm | 0 |
| Correction range, mm | 200 |
| Power, kW | 30 |
| Machine size (LxWxH), mm | 5300x1600x2450 |
