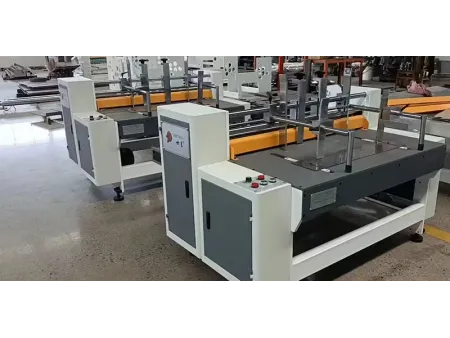

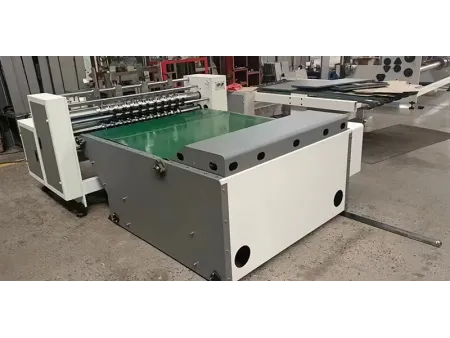

Partition Slotter Slitter Machine
Request a Quote
Corrugated board slitting & cutting machine for making corrugated partitions
Structure
Push-Type Feeder
Cutting Section
Slitting Section
Technical Specifications
| Model | | | | | | |
| Slot blade plate 300mm | Max. | 1000x280mm | 1150x280mm | 1350x280mm | 1550x280mm | 1750x280mm |
| Min. | 100x75mm | 100x75mm | 100x75mm | 100x75mm | 100x75mm | |
| Slot blade plate 400mm | Max. | 1000x380mm | 1150x380mm | 1350x380mm | 1550x380mm | 1750x380mm |
| Min. | 100x90mm | 100x90mm | 100x90mm | 100x90mm | 100x90mm | |
| Slot blade plate 600mm | Max. | 950x600mm | 1150x600mm | 1350x600mm | 1550x600mm | 1750x600mm |
| Min. | 200x110mm | 200x110mm | 200x110mm | 200x110mm | 200x110mm | |
| Min. slotting distance, mm | 45 | |||||
| Slot knife thickness, mm | 5 / 7 | |||||
| Number of slot knives | 9 knives (expandable according to customer requirements) | |||||
| Working speed, pcs/min | 0-120 | |||||
| Power, kW | 1.1 | |||||
| Machine dimensions, m | 1.6x1.5x1.3 | 1.6x1.7x1.3 | 1.7x1.9x1.3 | 1.9X2X1.3 | 2.2x2.2x1.3 | |
