Partition Slotter Machine
Request a Quote

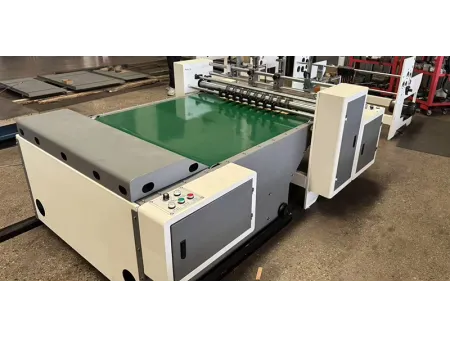

Partition slotting machine for 3/5/7-ply corrugated cardboard
Partition slotter machine supports automatic sheet feeding and integrates multiple functions such as slitting and slotting. It is suitable for various types of corrugated board, including 3-ply, 5-ply, and 7-ply configurations. Customization is available based on customer requirements.
Structure
Electrical Cabinet

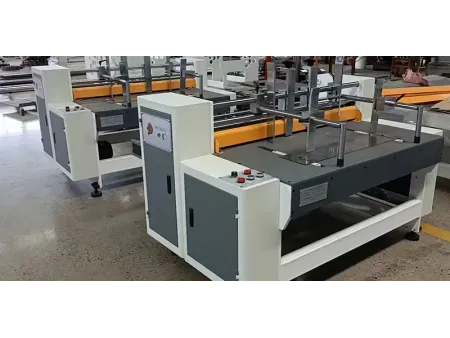

Rear Push-Type Feeder

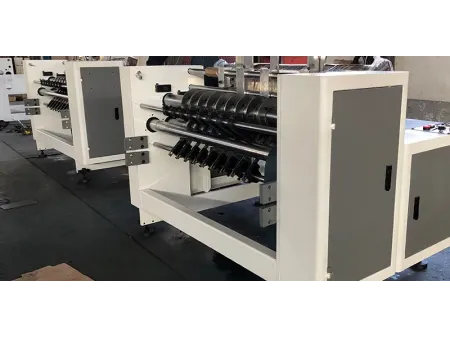

Slotting and Slitting Section
Technical Specifications
| Model | | | | | | | | | | | | |
| Max. paper size, mm | 1000x280 | 1000x380 | 1000x600 | 1150x280 | 1150x380 | 1150x600 | 1350x280 | 1350x380 | 1350x600 | 1550x280 | 1550x380 | 1550x600 |
| Min. paper size, mm | 100x70 | 100x90 | 200x160 | 100x70 | 100x90 | 200x160 | 100x70 | 100x90 | 200x160 | 100x70 | 100x90 | 200x160 |
| Max. slot depth, mm | 140 | 190 | 300 | 140 | 190 | 300 | 140 | 190 | 300 | 140 | 190 | 300 |
| Min. slotting distance, mm | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
| Slot knife thickness, mm | 5/7 | 5/7 | 5/7 | 5/7 | 5/7 | 5/7 | 5/7 | 5/7 | 5/7 | 5/7 | 5/7 | 5/7 |
| Number of slot knives | 9 units knives (03 slitting 06 slotting) | 9 units knives (03 slitting 06 slotting) | 9 units knives (03 slitting 06 slotting) | 9 units knives (03 slitting 06 slotting) | 9 units knives (03 slitting 06 slotting) | 9 units knives (03 slitting 06 slotting) | 9 units knives (03 slitting 06 slotting) | 9 units knives (03 slitting 06 slotting) | 9 units knives (03 slitting 06 slotting) | 9 units knives (03 slitting 06 slotting) | 9 units knives (03 slitting 06 slo tting) | 9 units knives (03 slitting 06 slotting) |
| Working speed, pcs/min | 0-120 | 0-120 | 0-120 | 0-120 | 0-120 | 0-120 | 0-120 | 0-120 | 0-120 | 0-120 | 0-120 | 0-120 |
| Motor power, kW | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 |
| Machine dimensions (LxWxH), m | 1.7x1.9x1.3 | 1.9x2x1.3 | 2.2x2.2x1.3 | 1.7x1.9x1.3 | 1.9x2x1.3 | 2.2x2.2x1.3 | 1.7x1.9x1.3 | 1.9x2x1.3 | 2.2x2.2x1.3 | 1.7x1.9x1.3 | 1.9x2x1.3 | 2.2x2.2x1.3 |
