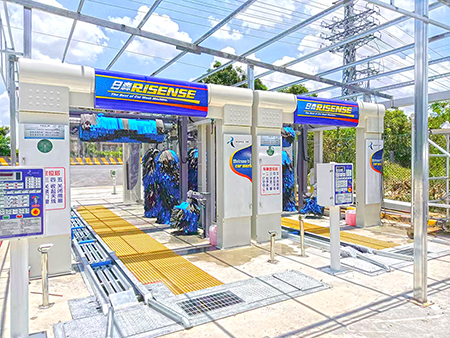

CC-670 (7-Brush)
This tunnel car wash system has 7 car brushes: 1 vertical lift overhead brush, 2 large vertical brushes and 4 small vertical brushes. This car wash system features a PLC automatic computer control system, which is known for its security and washing efficiency. A one-click was method is also available. For more information, please see the tunnel car wash system parameters below.
- Parameters
- Configurations
- Advantages
- Details
Parameters
| Model | CC-670 |
| Overall dimension | 8000*3800*3440mm |
| Length of conveyor:9960m (including wheel guide) | |
| Installation size | 10240*4000mm |
| Voltage | AC 380V50Hz (5-wire system) |
| Water supply | Pipe diameter: DN25, water flow≥200L/min |
| Air supply | Air pressure: 0.75-0.9MPa, air flow≥0.1m³/min |
| Ground flatness | Deviation≤10mm |
| Available car to wash | Car\jeep\coach within 10 seats |
| Moving range | 5300*2100*2100mm(wheelbase≤3200mm) |
| Car wash capacity | 45-55 sets/hour |
| Water consumption | 145L/car |
| Power consumption | 0.6kW/car |
| Shampoo consumption | 20-40ml/car |
| Wax consumption | 30ml/car |
Key parts
| PLC | Mitsubishi from Japan |
| Optoelectronic monitoring | Banner from the USA |
| Brush rotating motor | SITI |
| Contactor | Schneider from France |
| Proximity Switch | Pepperl Fuchs from Germany |
| Small brush cylinder | AirTAC |
| Wax suction pump | Bello Zon from Germany |
Configuration
| Hot-dipped galvanized frame | 1 group |
| Shampoo spray system | 1 group |
| Wax spray system | 1 group |
| Contour-following drying system | 1 group |
| Car entry guide rail apparatus | 1 group |
| Chassis spraying system | Can be added |
| High pressure water spraying device | Can be added |
| Equipment data intellectualization | Management, spot check, operation |
| Self-diagnose system | Automatic fault display, self-checking |
| Short vertical brushes | 2 |
| Long vertical brushes | 2 |
| Top brush | 1 |
Advantages
- The galvanized frame of this tunnel car wash system is both solid and durable.
- The high pressure washing system improves the washing performance.
- The foam and water wax proportioning system is easy to use.
- Automatic conveyor.
- The liquid automatic siphon is easy to operate.
- Multiple cleaning and long term wash processes rinse the car completely and ensure an outstanding washing performance.
- The PLC fully-automatic computer control system ensures a higher security.
- The one-click washing method is easy to operate.
- A contour-following drying system creates a better drying performance.
Details
-

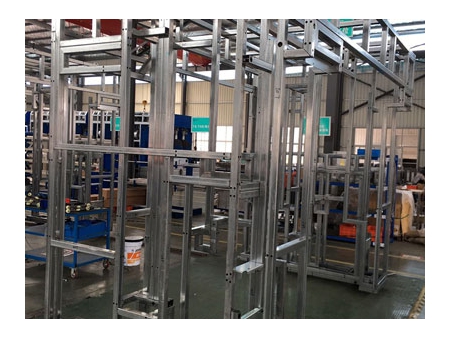

Non-welded hot-dipped galvanized steel frame
-

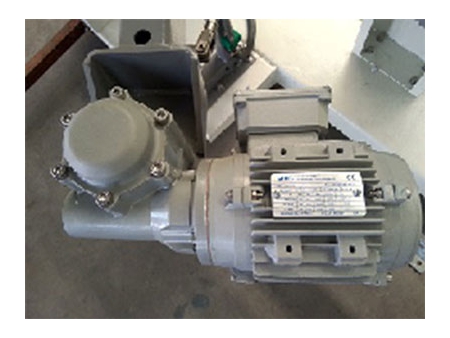

SITI Motor
-
Air dryer
-

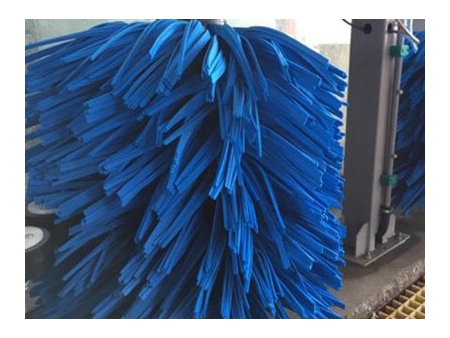

Foam brushes
- After years of research and development, 4th generation of swallow-tailed foam brushes contain an appropriate proportion of rubber and thus prevent potential risks.
- Foam brushes have great capacity to retain water, which incredibly improves the washing effect.
-
The conveyors automatically move the car to complete the whole process from pre-soak rinse to air drying. Tunnel car wash equipment CC-670 (7-Brush) can continuously clean cars.
Features- Easy to manage;
- Various combinations of car wash methods;
- High efficiency: wash 45 to 55 cars per hour.
- Low energy consumption: on average, it consumes 150 L of water and 0.6 kWh of electricity per car.
-

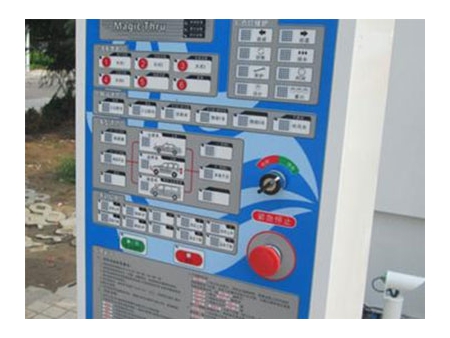

Control panel
- Being enclosed
- Water proofing
- Long life of the circuit board
-
Conveyors
- Suitable for various types of cars
- Equipped with P209 pillow block bearing
- Long service life
- Convenient to maintain
-

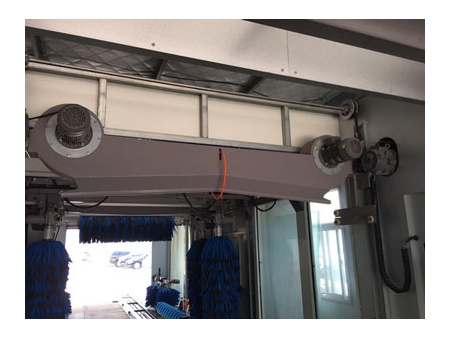

Dryers
- Integral top dryers on both sides
- High-pressure air drying effect
- Move vertically to adapt to various cars
-
Signals at the entrance
- Red cross and green arrow signal light
- Easy to notice
-
Width
- Tunnel car wash equipment CC-670 is 3.8 meters in width
- 2.2 meters for car wash is much safer
