Tunnel Car Wash Equipment (5-Brush)
Request a Quote
CC-650

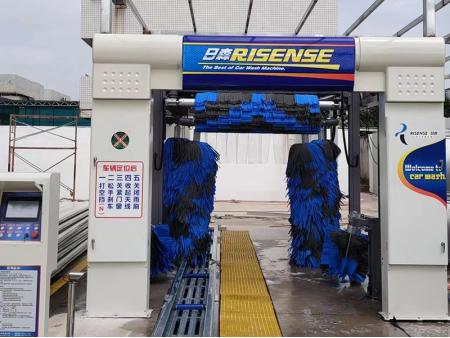

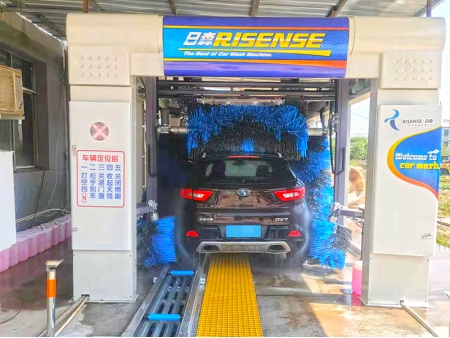

This tunnel car wash system features 5 car brushes: 1 vertical lift overhead brush, 2 small vertical brushes and 2 large vertical brushes. The galvanized frame of this car wash system is both solid and durable, and the control system is a fully automatic PLC computer control system, which improves security levels. For more details, please see the table below.
Parameters
| Model | CC-650 |
| Overall dimension | 7000*3800*3440mm |
| Length of conveyor: 9120mm (including wheel guide) | |
| Installation size | 9250*4000mm |
| Voltage | AC 380V 50Hz (5-wire system) |
| Water supply | Pipe diameter: DN25, water flow≥200L/min |
| Air supply | Air pressure: 0.75-0.9MPa, air flow≥0.1m³/min |
| Ground flatness | Deviation≤10mm |
| Available car to wash | Car\jeep\coach within 10 seats |
| Moving range | 5300*2100*2100mm(wheelbase≤3200mm) |
| Car wash capacity | 45-55 sets/hour |
| Water consumption | 130L/car |
| Power consumption | 0.6kW/car |
| Shampoo consumption | 20-40ml/car |
| Wax consumption | 30ml/car |
Key Parts
| Hot-dipped galvanized frame | 1 group |
| Shampoo spray system | 1 group |
| Wax spray system | 1 group |
| Contour-following drying system | 1 group |
| Car entry guide rail apparatus | 1 group |
| Chassis spraying system | Can be added |
| High pressure water spraying device | Can be added |
| Equipment data intellectualization | Management, spot check, operation |
| Self-diagnose system | Automatic fault display, self-checking |
| Short vertical brushes | 2 |
| Long vertical brushes | 2 |
| Top brush | 1 |
Configuration
| PLC | Mitsubishi from Japan |
| Optoelectronic monitoring | Banner from the USA |
| Brush rotating motor | SITI |
| Contactor | Schneider from France |
| Proximity Switch | PEPPERL FUCHS from Germany |
| Small brush cylinder | AirTAC |
| Wax suction pump | Bello Zon from Germany |
Advantages
- The galvanized frame of this tunnel car wash system is both solid and durable.
- The high pressure wash system improves the washing performance.
- The foam and water wax proportioning system is easy to use.
- One group of lift dryers.
- The liquid automatic siphon is easy to operate.
- Multiple cleaning and long term washing applications will fully rinse the car and ensure a full washing performance.
- A PLC full-automatic computer control system ensures a higher security.
- The one-click washing method is easy to operate.
- The contour-following drying system ensures a better drying performance.
