Tunnel Dryer
Request a Quote
HGS Series

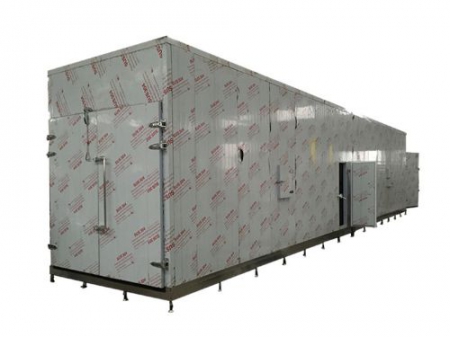

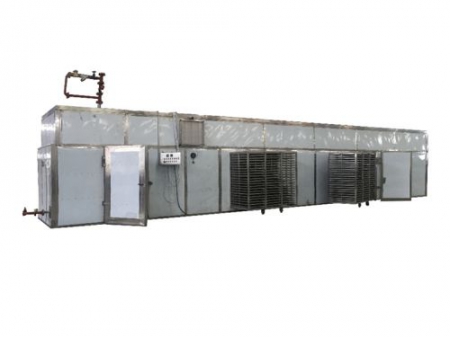

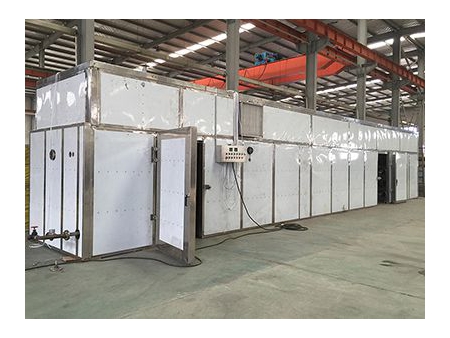

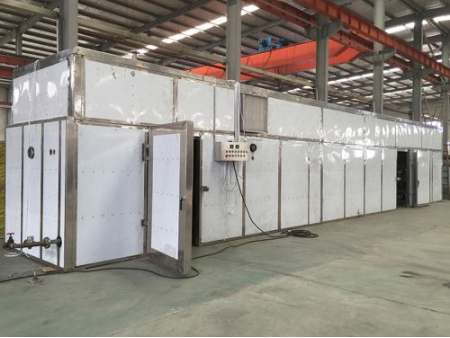

HGS Series Tunnel-type Dryer consists of a drying room, trolleys, trays, heat exchanger, and an electrical control system. It is specifically designed for drying large products requiring a long drying time and high-quality appearance.
Samples
- Fresh Plum
- Dried Plum
- Fresh Apricot
- Dried Apricot
Specifications
| Model | Loading capacity (kg) | Number of carts | Number of drying tray | Tray size (mm) | Steam consumption (kg/h) | Drying temperature (℃) | Power (kW) | Dimensions (m) |
| 2500 | 7 | 462 | 930×600×30 | 750 | < 100 | 11.0 | 12.3×2.3×3.1 | |
| 4000 | 11 | 726 | 930×600×30 | 1200 | < 100 | 11.0 | 16.3×2.3×3.1 | |
| 10000 | 28 | 1848 | 930×600×30 | 2500 | < 100 | 24.2 | 19.2×4.5×3.1 |
Features

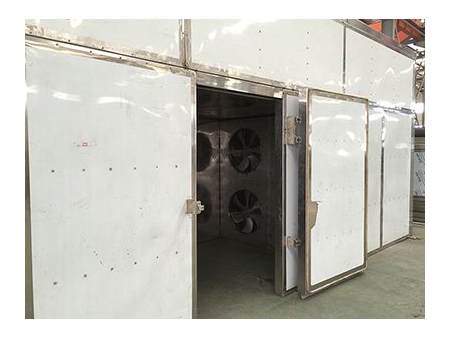

- The modular insulation panels are easy to disassemble and assemble, saving transportation space and reducing investment costs.
- The 100mm-thick insulation panel has excellent insulation and energy-saving capabilities. The double-sided stainless steel construction ensures compliance with food safety and hygiene requirements.

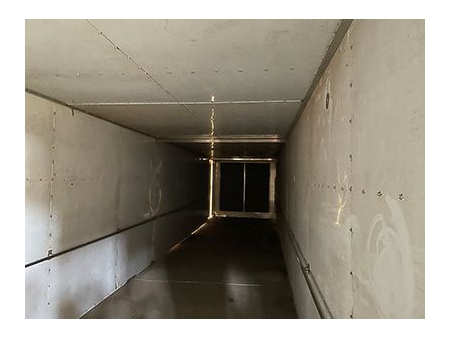

- The interior of the dryer is equipped with collision protection bars on both sides to prevent damage to the walls and extend the lifespan of the drying equipment.

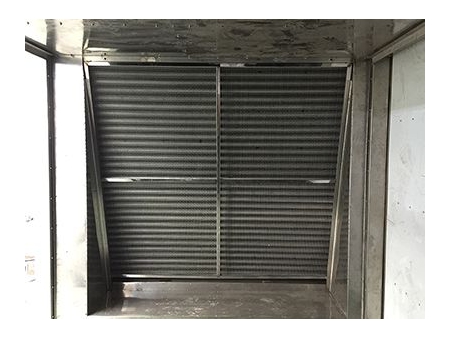

- High-quality heat exchangers are used, with steel pipes, aluminum fins and a stainless steel shell, ensuring a large heat exchange area and high heat transfer efficiency. According to user requirements, direct heating can be achieved using burners.

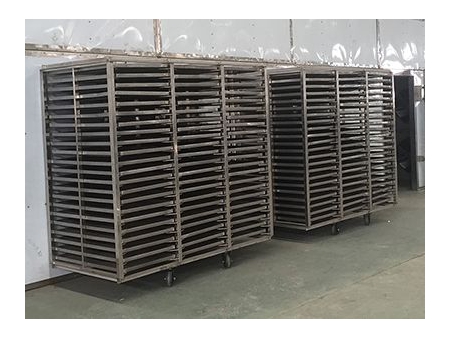

- The trolleys and trays are made of stainless steel, ensuring compliance with food safety and hygiene standards. The bottom of the trolley is equipped with high-quality nylon wheels, which are wear-resistant and provide easy maneuverability.

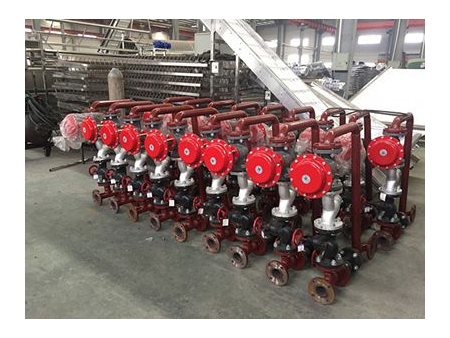

- Steam is controlled using pneumatic valves to avoid the aging issue commonly seen in electromagnetic valve coils. This prolongs the dryer's lifespan and reduces maintenance costs.

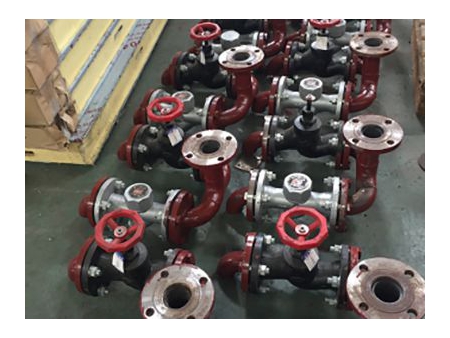

- The hot air dryer uses high-quality steam trap systems for automatic drainage control, preventing water accumulation in the heat exchanger and improving its efficiency.
