Angled aluminum extrusions

Zhongpeng supplies a range of 6000 series extruded aluminum angles, including 6060, 6061, 6063, and 6082 alloys. These aluminum angles provide corrosion resistance and can be cut to required dimensions, suitable for a wide range of structural and industrial applications. Anodized and painted surface finishes are available upon request to meet specific project requirements.

Available Sizes

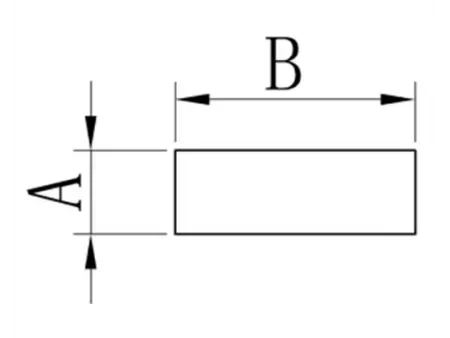

Product No.	Short Side A (mm)	Long Side B (mm)	Thickness (mm)	Weight (kg/m)	Extrusion Press Capacity	Alloy & Temper
SOMA_A000021	10	10	1	0.051	500	6060-T5
ZW_D020035	10	10	1.5	0.075	500	A6063S-T5
SOMA_A000671	10	10	2	0.097	500	-
ZWQC-XPQC-14	10	10	2	0.090	500T	6061-T6
XCKM-62	12	12	1.5	0.091	500T	6063-T5
ZW_D030547	12	12	1.59	0.096	500T	6063-T6
ZWQC-XPQC-16	12	12	2	0.112	500T	6061-T6
ZW_D010846	12	12	2	0.119	500T	6060-T66
ALD_D003905	12	12	3	0.170	500	6063-T5
ZW_D080154	12.6	12.6	1	0.065	500T	6063-T6
ZW_D074269	9.5	12.7	1.58	0.088	500T	6063-T5
ZW_D031948	12.7	12.7	0.9	0.059	500T	6063-T5
PCA_D009281	12.7	12.7	1.59	0.102	500	6063-T5
PCA_D009327	12.7	12.7	1.6	0.103	500	6061-T6511
SOMA_A000026	10	15	1	0.065	500	6060-T5
ZW_D055022	10	15	1.5	0.095	500T	6060-T66
SOMA_A000185	10	15	2	0.124	500	6060-T6
TP-02	15	15	0.9	0.071
CHD_A000227	15	15	1	0.078	500T	6060-T66
SOMA_A000022	15	15	1.5	0.115	500	6060-T5
ZW_D080412	15	15	1.5	0.115	500T	6063-T6
SOMA_A000287	15	15	2	0.151	500	6060-T66
SOMA_A000165	15	15	3	0.219	500	6060-T6
ZWQC-QRNA-05	10	15	2	0.124	660T双孔	6061-T6
SOMA_A001267	15.875	15.875	3.175	0.245	500	6082-T6
CCNZ-28	10	17	3	0.194	500	6063-T5

Material Selection Guide

Alloy	Key Properties	Typical Applications
6060	Corrosion resistant, easy to process and weld, smooth and uniform surface	Furniture framing, light structural elements, decorative structures
6061	High strength, corrosion resistant, weldable	Industrial frames, load-bearing structures, marine components
6063	Corrosion resistant, smooth surface finish	Architectural profiles, window frames, curtain wall systems
6082	High strength, corrosion resistant	Industrial structures, load-bearing frameworks, heavy machinery components
