CNC Dovetail Machine

Request a Quote

View All: http://woodmachines-en.com/1-6-4-cnc-dovetail-machine.html

//Woodworking Machinery

Automatic dovetailing machine for producing dovetail joints in drawers and furniture components

Woodworking Machinery

Spindle speed18000rpm
Spindle motor power3.5kW
Install power5.0kW
Tenon spacingAdjustable

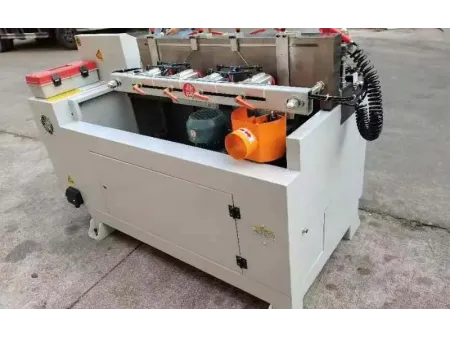

CNC dovetail machine is a specialized woodworking system designed for machining precise dovetail joints, commonly used in drawers, cabinets, and structural furniture components. Dovetail joints offer superior mechanical strength and resistance to pulling and twisting forces, making them more durable than standard mortise and tenon connections. This tenoning machine enables high-speed, repeatable processing with tight joint fit, supporting both small-batch customization and large-scale manufacturing.

Features

Equipped with a high-precision servo system using ball screw drives and linear guide rails to ensure accurate and smooth motion during machining.
Features a dual-station design for simultaneous cutting of both the male (tail) and female (pin) joints, supporting safe, stable operation and optimized for high-volume production.
The intuitive digital input interface allows users to enter size parameters directly without the need for programming, making operation fast and user-friendly even for first-time operators.

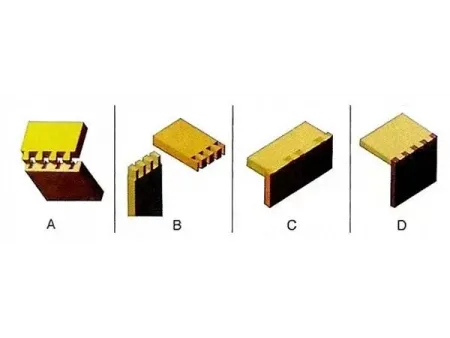

Reference Diagram of Tenon Types

Specifications

Mode	HF-650	HF-900
Spindle speed	18000rpm	18000rpm
Spindle motor power	3.5kW	3.5kW
X-axis servo motor power	0.75kW	0.75kW
Y-axis servo motor power	0.75kW	0.75kW
Install power	5.0kW	5.0kW
Working width	10-650mm	10-900mm
Working thickness	5-25mm	5-25mm
Tenon spacing	Adjustable	Adjustable
Cutting cycle	3-30s	3-30s
Tenon types	A/B/C/D/E/F/G/H	A/B/C/D/E/F/G/H
Working air pressure	0.7MPa	0.7MPa
Packing Size (L×W×H)	1890×860×1190mm	2140×860×1190mm
Machine weight	663kg (with wooden box)	830kg
