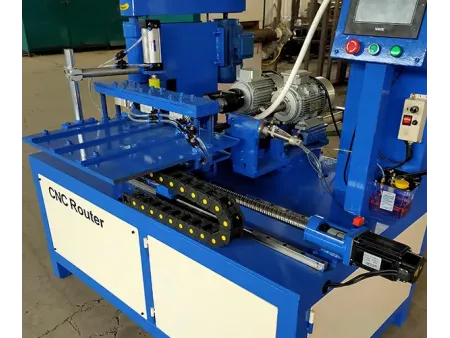

CNC Milling Drilling Tapping Machine
Request a Quote
//Woodworking Machinery
CNC wood processing machine for shaping, hole drilling and tapping of wood chair legs
Woodworking Machinery
- Milling motor power2.2kW
- Drilling motor power1.1kW
- Machine weight600kg
- Machine dimensions (L×W×H)1300×750×1500mm
The CNC milling, drilling, and tapping machine integrates multiple processing functions into a single compact unit. By combining shaping (milling), hole drilling, and thread tapping into one automated cycle, it eliminates the need for machine changeovers and manual part transfers between operations, significantly improving efficiency, especially in batch production. It is ideal for processing solid wood or engineered wood components such as chair legs, frame parts, and support structures, where precision and speed are essential.
Specifications
- Max. workpiece length (for wood leg)800mm
- Max. workpiece size (wood leg)80×80mm
- Milling motor power2.2kW
- Drilling motor power1.1kW
- Taping motor power0.75kW
- Air pressure0.4-0.9MPa
- Screw rangeM6-M8
- Total power4.0kW
- Machine weight600kg
- Machine dimensions (L×W×H)1300×750×1500mm

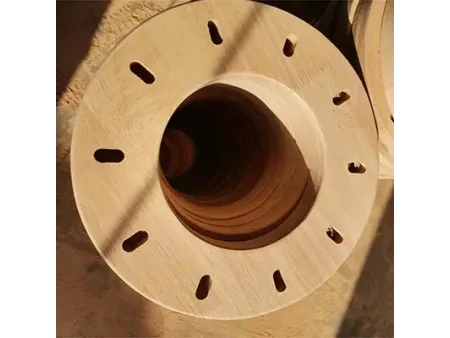

Sample Showcase
