CNC Mortiser/Tenoner (Side Hole Drilling Machine) Manufacturer

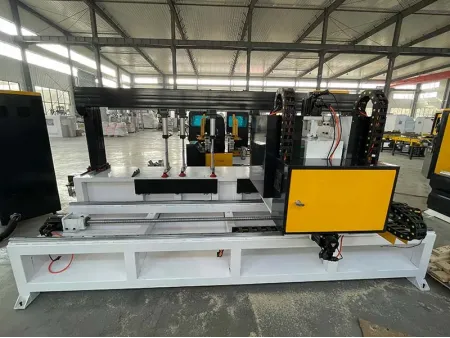

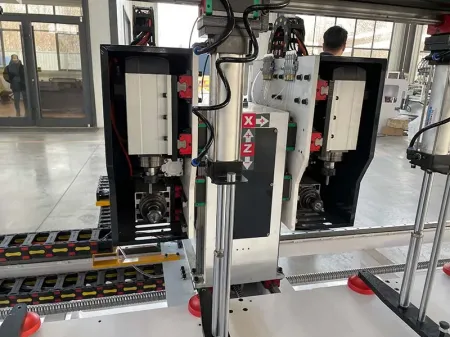

CNC Mortiser/Tenoner (Side Hole Drilling Machine)

Request a Quote

View All: http://woodmachines-en.com/1-7-2-cnc-mortiser-tenoner.html

//Woodworking Machinery

CNC mortise and tenon machine for performing operations of side drilling, mortise and tenon milling

Woodworking Machinery

Max. working length2050mm
Max. working width500mm
Machine weight1000kg
Machine dimensions (L×W×H)3400×1500×1750mm

CNC mortising and tenoning machines combine precision side drilling, mortise cutting, and tenon milling in wood panels and components. Integrating multiple operations into one system, they are ideal for streamlining production in modern furniture manufacturing. These machines ensure strong, clean, and accurate assembly of wood parts by precisely machining connection points for fasteners, dowels, and joint structures.

Specifications

Max. working length2050mm
Max. working width500mm
Max. working height150mm
Max. diameter of round tenon100mm
Max. width of transverse tenon500mm
Max. width of vertical tenon150mm
Air pressure0.4-0.9MPa
Cutter diameter5-30mm
Total power8.0kW
Spindle power4-3.5kW
Machine weight1000kg
Machine dimensions (L×W×H)3400×1500×1750mm

Applications

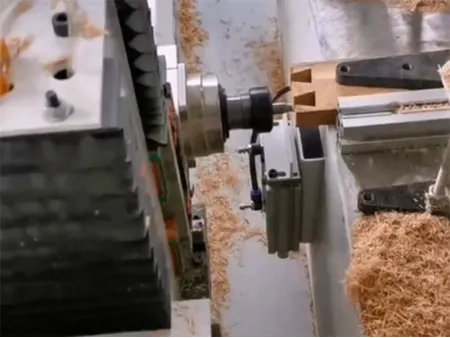

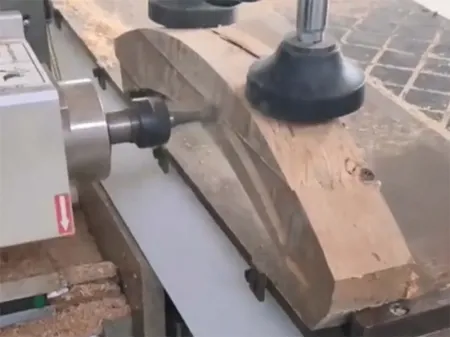

Used for side drilling, mortise cutting, and tenon slotting on wooden furniture components. All shapes, sizes, and cutting angles can be adjusted or customized according to specific production requirements.

Features

Combines drilling, mortising, and tenon cutting in one compact machine, reducing floor space requirements and eliminating transfer time between multiple processing stations.
Equipped with an advanced measurement and positioning system to ensure tight tolerances and accurate alignment of holes, mortises, and tenons for improved and high-precision final product quality.

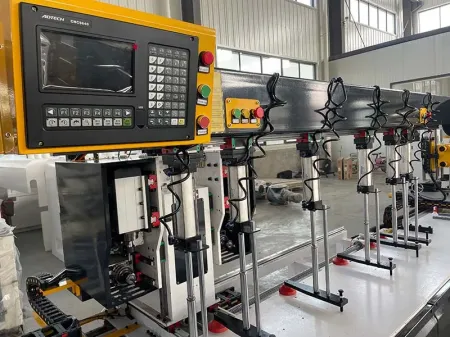

Operated via a user-friendly intelligent CNC control interface with programmable parameters, allowing for quick setup, mode switching, and adaptation to a wide range of part shapes and sizes.
