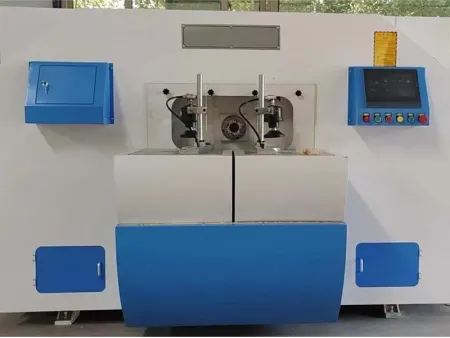

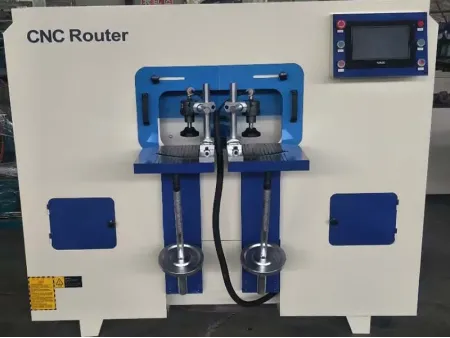

Wood tenoning machine for forming joint tenons to suit mortice holes

Fully Automatic Single-End Tenoner

Woodworking Machinery

Max. vertical angle30°
Spindle speed8000r/min
Machine weight900kg
Machine dimensions (L×W×H)2300×1450×1600mm

Semi-auto single-end tenoners are used for processing tenons on one end of a wood workpiece, making them ideal for small to medium-scale production. They operate at high speeds with adjustable settings, accommodating different design requirements with ease. These machines are capable of producing large quantities of tenons in a short period, enhancing processing efficiency and significantly reducing manual workload in joinery and frame production.

Specifications

Max. diameter of round tenon100mm
Max. diameter of rectangular tenon140×80mm
Max. width of transverse tenon120mm
Max. width of vertical tenon120mm
Max. width of slant tenon120mm-30°
Max. vertical angle30°
Max. transverse angle45°
Air pressure0.4-0.9MPa
Dust suction inlet diameterØ98mm×2pcs
Spindle speed8000r/min
Total power7.0kW
Machine weight900kg
Machine dimensions (L×W×H) 2300×1450×1600mm

Applications

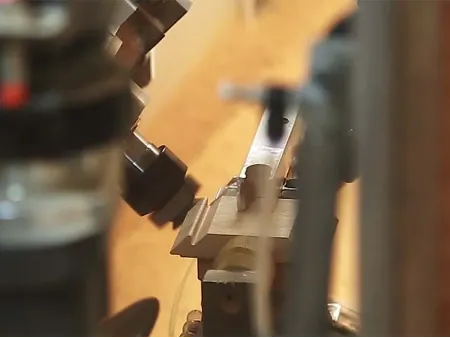

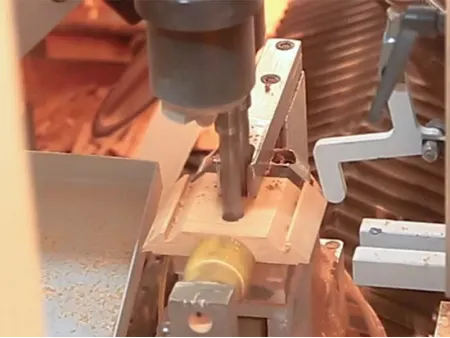

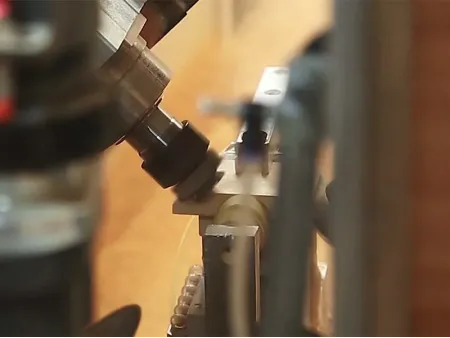

Capable of cutting a wide range of tenon types, including round tenons, rectangular tenons, horizontal tenons, straight tenons, angled shoulder tenons, and sloped tenons. Suitable for furniture, door frame, and stair part production.

Advantages

Working size is adjustable to fit different wood dimensions.

Equipped with two working tables for high-speed, alternating operation.

Tenon angles can be flexibly adjusted to match specific design requirements.
