Power Cable Jacket Extrusion Line Manufacturer

Power Cable Jacket Extrusion Line

Request a Quote

Website: http://wirecable-solution.com/2-1-1-power-cable-jacket-extrusion-line.html

200mm & 120mm twin-screw extruder line for cable sheathing

Enhance Your Cable Sheathing Process with Our Power Cable Jacket Extrusion Line

Our power cable jacket extrusion line is specifically designed for high-voltage cable sheathing and extrusion requirements. Our 200mm and 120mm twin-screw extruder line delivers exceptional performance, ensuring precise and efficient cable sheathing, applicable for PVC, PE, LDZH, LDLH, semiconductor PVC, semiconductor PE, and more.

Features

Reduction Gearbox: Our extruder line incorporates precision-ground gears and a specialized reduction gearbox, ensuring smooth and reliable extrusion.

High-Quality Materials: The main barrel and screw are made of 38GrMoA steel, treated with nitrogen for high hardness, wear resistance, and corrosion resistance.

Cooling System: The barrel is cooled using a high-pressure centrifugal fan, ensuring optimal cooling during the extrusion process.

Aluminum Heating Elements: Our extruder line features efficient cast-aluminum heating elements, monitored by precise temperature control instruments for easy adjustments.

Sleek Design and Stable Transmission: Our extruder line is not only aesthetically pleasing but also features a well-designed structure for stable and reliable transmission.

Specifications

Model	Ø 200 Ø 120
Screw diameter	Ø 200 mm Ø 120 mm
Extrusion amount	800 kg/h
Viable conductor shape	circular, sector, stranded, solid
Applicable material	PVC, PE, LDZH, LDLH, semi-conducting PVC, semi-conducting PE
Control mode	PLC
Max line speed	80 m/min
Wire diameter control precision	± 0.02 mm

Details

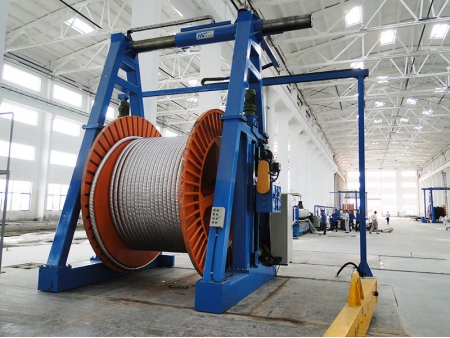

Pay-Off

Pneumatic mechanical tension control for smooth payout
Proximity switch-based metering and wire break detection

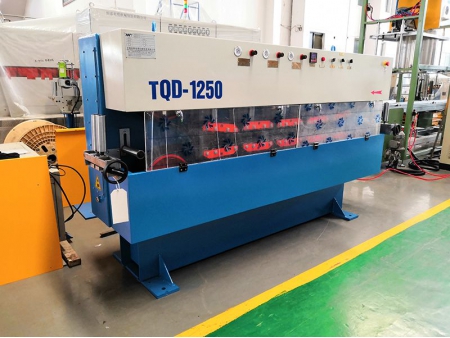

Caterpillar Haul Off Unit

Pneumatic clamping and automatic tensioning of the traction belt ensure low noise and high output efficiency.
Synchronization of traction speed with extruder speed ensures reliable and stable operation.
The twin tracks are driven by a DC motor via a spiral bevel gear system, ensuring excellent control and performance.
The pneumatic clamping and release system offers sensitivity and reliability, featuring a pressure adjustment display instrument.

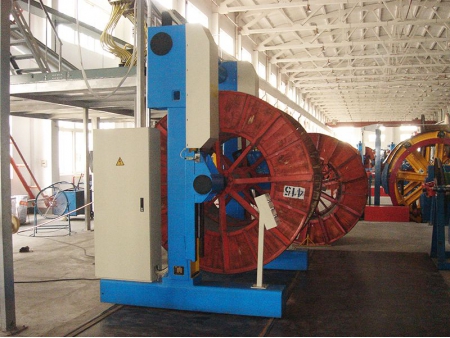

Take-Up

Motorized wire clamping with mechanical and electrical protection mechanisms
Easy loading and unloading of wire bobbins
Synchronization with the main machine for continuous tension during operation and delayed stoppage after machine shutdown
