GHS-22
Continuous heated-bar bag sealer for sealing heavy-duty PE film bags
The heavy duty heated-bar sealing machine is designed for PE heavy-film bags and supports sealing with PE strip tape. It is suitable for applications that require strong sealing performance, high durability, and compliance with strict environmental requirements. Typical industries include chemicals, building materials, and food processing, where reliable closure of thick PE bags is essential.

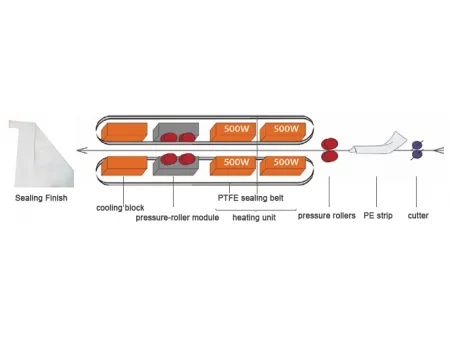

Process Flow
Bag mouth trimming (cutter) → PE strip application → Pressure rollers for pre-compression → Heat sealing (2 heated-bar units) → Pressure-roller module compression → Cooling (1 cooling block)
Technical Specifications
| Model | GHS-22 |
| Power supply | AC 380V/50Hz |
| Total power | 3kW |
| Drive motor power | 0.75kW |
| Heating power | 0.5kW×4 |
| Sealing speed | 0-11m/min |
| Sealing temperature | 0 to 400℃ (adjustable) |
| PE sealing width | 55mm |
| Machine dimensions (L×W×H) | 2140×1030×2000mm |
| Machine weight | 460kg |
Specifications are subject to change without prior notice.
Product images may differ from the actual model configuration.
