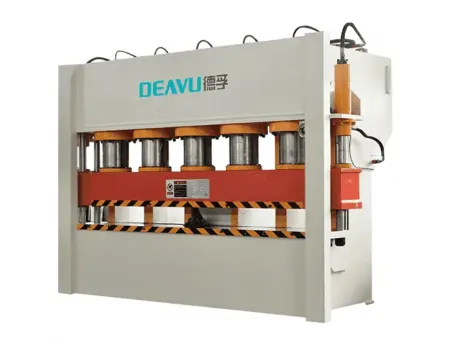

Single-Action 8-Column Hydraulic Embossing Press

Request a Quote

View All: http://metalforming-en.com/2-1-single-action-hydraulic-embossing-press.html

YDM Hydraulic Presses

Hydraulic press for metal door production

Nominal capacity 20000kN to 170000kN
Return capacity 360kN to 2500kN
Slide stroke 500mm
Table size (L-R×F-B) 1480×2500mm to 2400×4200mm

The YDM single-action 8-column hydraulic embossing press is a specialized hydraulic press designed for forming decorative patterns on security doors, steel doors, interior doors, stainless steel doors, and iron doors. It works with a variety of dies to press intricate textures such as metal embossing, leather embossing, and stainless steel embossing.

With a nominal capacity ranging from 20,000kN to 170,000kN, this press supports deep, precise embossing with consistent results. It is built with either a three-beam eight-column six-cylinder structure or a frame structure, offering excellent guidance and stability during operation. The press uses high-quality Schneider electrical components, with a clean layout and complete circuit diagrams included for easy operation and maintenance.

Optional features include light curtain safety protection, cooling systems, and a PLC control unit. The press also incorporates advanced techniques such as shot-blasted oil tanks, high-pressure dust collection, and residue removal.

Applications

Metal embossing and stainless steel pattern forming
Composite material forming
Press forming of water tank panels and door frame panels

Key Features

Eight-column structure provides excellent stability and precision during embossing
Single-action mechanism offers reliable control for clean, high-quality impressions
Adjustable pressure and embossing depth accommodate various door sizes and material thicknesses
Intuitive control panel allows operators to fine-tune parameters with ease
Integrated safety features prioritize operator protection and ensure safe working conditions
Independent hydraulic and electrical systems with centralized button control enable adjustment, manual, and semi-automatic operation modes
Adjustable working pressure, pressing speed, and stroke settings support both pressure-based and stroke-based processing

Specifications

Model		Unit	17000T	12000T	10000T	6000T	4500T	3600T	3000T	2500T	2000T
Nominal capacity		kN	170000	120000	100000	60000	45000	36000	30000	25000	20000
Return capacity		kN	2500	2000	800	500	360	360	360	360	360
Max. working pressure		MPa	25	25	25	25	25	25	25	25	25
Slide stroke		mm	500	500	500	500	500	500	500	500	500
Max. opening height (daylight)		mm	600	600	600	600	600	600	600	600	600
Slide speed	Descent	mm/s	120-150	120-150	120-150	120-150	120-150	120-150	120-150	120-150	120-150
	Pressing	mm/s	3-6	3-6	8-12	8-12	8-12	8-12	8-12	8-12	8-12
	Return	mm/s	120	120	120	120	120	120	120	120	120
Table size	Left-Right	mm	2000	1800	2400	2100	2000	1600	1500	1500	1480
Table size	Front-Back	mm	3600	3600	4200	4000	3000	2600	2500	2500	2500
Main motor power		kW	270	180	165	110	90	74	60	52	44

Note: The above models represent our standard configurations. Custom designs and special specifications can be developed according to your specific requirements.

Download

Our product brochure

The YDM single-action 8-column hydraulic embossing press delivers reliable power and precision for metal door embossing and panel forming. Contact us to configure the best model for your production line.
