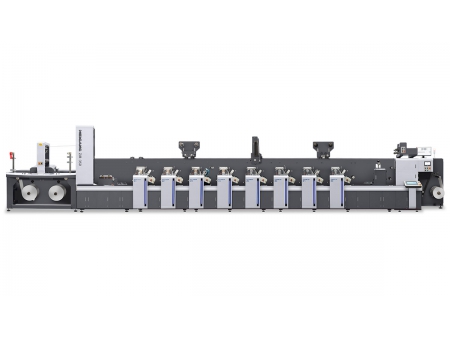

Flexo Printing Machine, ZJR-350G/450G/650G

Request a Quote

Website: http://weigangmachinery.com/2-14-zjr-350g-flexo-printing-machine.html

Max. printing speed 180m/min
Printing colors 4-12 colors

Features

The printing machine is powered by the latest servo control system, with each unit driven by its own independent servo motor. A total of 23 servo motors (across the 8-color unit and die-cutting unit) ensure precise registration even at high speeds.

The plate cylinder uses an air-shaft sleeve design—lightweight, gearless, and easy to change. This not only speeds up plate changes but also improves print quality while reducing maintenance needs.

The printing machine is compatible with a wide range of substrates, including paper and films such as PET, OPP, CPP, and PP.

Printing and inking pressure are adjustable through micro-tuning of the support frames. Cylinder size changes require minimal adjustment, and even special printing requirements need only minor tweaks—significantly boosting efficiency compared with older designs that demanded full recalibration every time.

The printing roller is equipped with a water-cooling system, preventing heat buildup from UV curing and ensuring stable performance when printing on films.

Details

Non-stop unwinder (optional)
Flexo printing unit
Touch screen control system
Movable cold stamping system
Waste scraper attachment (optional)
Mobile Turnbar

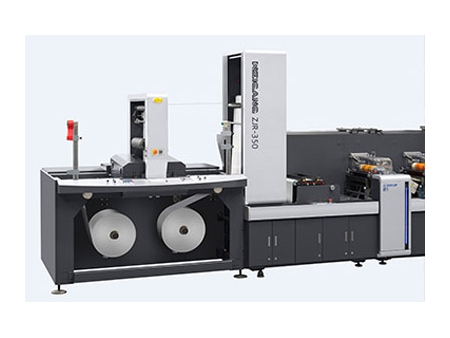

Integrated unwinder & rewinder
Auto turret rewinder (optional)

Technical Specifications

Model
Max. printing speed	180m/min	180m/min	180m/min
Printing color	4-12 colors	4-12 colors	4-12 colors
Max. printing width	350mm	450mm	650mm
Max. web width	360mm	480mm	680mm
Printing repeat length	Z76-190 (241.3mm-603.25mm)	Z76-190 (241.3mm-603.25mm)	Z96-230 (304mm-730.25mm)
Max. unwinding diameter	800mm	800mm	1000mm
Max. rewinding diameter	800mm	800mm	1000mm
Dimensions(L×W×H)	13 × 1.88 × 2.45m	13 × 2 × 2.45m	10 × 2.2 × 1.56m
(8-color printing unit, 1 die-cutting unit, non-stop rewinding and unwinding)
