5L Oxygen Concentrator
Request a Quote
The JAY-5AW/5BW 5L oxygen concentrator has got the certificates of CE, our 5L oxygen concentrator utilizes the basic principle of pressure swing adsorption (PSA) to deliver 90-96% oxygen.

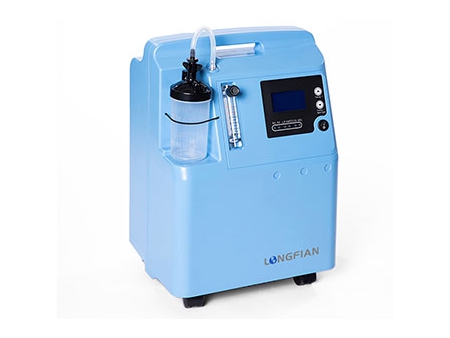

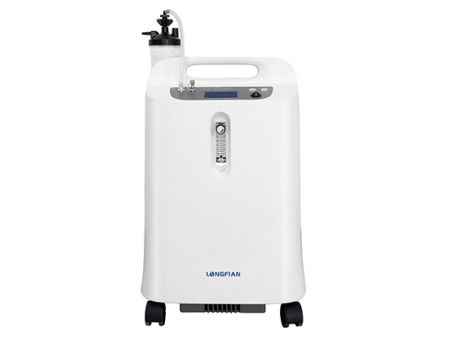

JAY-5AW
Technical Parameters
| Model | |
| Flow Rate | 0.5-5L/min |
| Oxygen Purity | 93% (±3%) |
| Outlet Pressure | 6-10 PSI (0.04-0.07 Mpa) |
| Power Consumption | ≤350W |
| Input Frequency | 50Hz; 60Hz |
| Put Voltage | AC230V ± 10%; AC110V ±10% |
| Alarm | 1. Power failure alarm 2. High & low pressure alarm 3. Low oxygen concentration alarm |
| Certificate | CE, FDA |

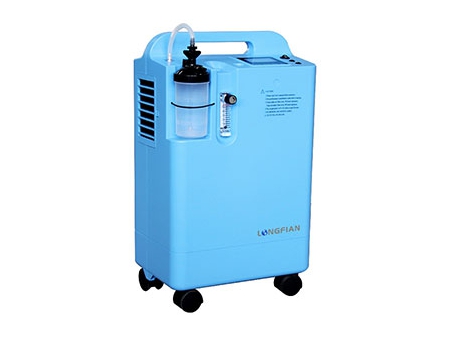

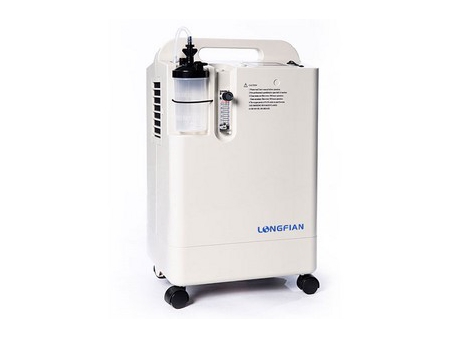

JAY-5BW
Technical Parameters
| Model | |
| Flow Rate | 0.5-5L/min |
| Oxygen Purity | 93% (±3%) |
| Outlet Pressure | 6-10 PSI (0.04-0.07 Mpa) |
| Power Consumption | ≤300W |
| Input Frequency | 50Hz; 60Hz |
| Put Voltage | AC230V ± 10%; AC110V ±10% |
| Alarm | 1. Power failure alarm 2. High & low pressure alarm 3. Low oxygen concentration alarm |

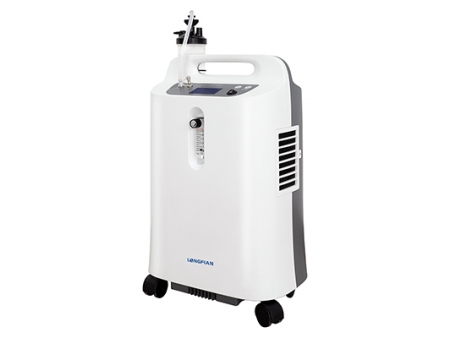

JAY-5DW
Technical Parameters
| Model | |
| Flow Rate | 0.5-5L |
| Outlet Pressure | 6-10PSI(0.04-0.07Mpa) |
| Oxygen Concentration | 93% (±3%) |
| Sound Level | ≤40dB |
| Power Consumption | ≤280W |
| Alarm | Power failure alarm, High/low pressure alarm, Low oxygen concentration alarm |
| Dimension | 355*245*595mm |
JAY-5HW
Technical Parameters
| Model | |
| Flow Rate | 0.5-5L/min |
| Oxygen Purity | 93%(±3%) |
| Outlet Pressure | 6-10PSI (0.04-0.07Mpa) |
| Sound Level | ≤38dB |
| Power Consumption | ≤350W |
| Dimension | 380*285*590mm |
| Input Frequency | 50Hz; 60Hz |
| Put Voltage | AC230V±10%; AC110V±10% |
| Alarm | Configuration A: Oxygen concentration on-site display, low flow visual and audible alarm Configuration B: Configuration A remote control, showing humidity/temperature/altitude, with visual & audible alarm for high/low pressure, low voltage, power failure alarm Configuration C: Configuration A remote control, showing humidity/temperature/altitude, with visual & audible alarm for high/low pressure, low voltage and warmup failure, extra voice broadcast |
Features
- With medical grade oxygen concentration above 90%, better treatment effect for patients with pulmonary fibrosis.
- Innovative cooling technology ensures 24/7/365 operation.
- Humidifier bottle with a pressure relief value of 6PSI, safer and more comfortable.
- Features four flexible castors with two brakes, easy to move or situate in any direction, safer and more convenient.
- Simple operation functions and easy-to-read 7.8″ LCD display.
- It can be connected to HFNC, which provides oxygen with stable high concentration, more comfortable.
- Low power consumption, energy and electricity saving.
- JAY-5HW oxygen concentrator can provide medical grade oxygen and automatically adapt to different altitude level.
- Keep patients more comfortable and healthy: patients with COPD (emphysema, corpulmonale, etc.) or cardiovascular and cerebrovascular diseases (coronary heart disease, angina pectoris, arrhythmia, etc.). Or the patients who are recommended to take oxygen.
- Oxygen supplementation in high altitude area: healthy person who is in a plateau with thin air, a mine or a high-rise office building that has been closed for a long time.
- Subhealth people keep healthy: people who are in a sub-health state due to their own functional decline, poor living environment and high pressure of work and life.
- Pregnant to keep healthy: pregnant women, students, white-collar workers, government officials and other people with long-term brain and mental stress use oxygen for health care.
- Nebulizer
- Pulse oximeter (SPO2)
