Digital Optical Fiber Identifier
Request a Quote
JW3306B

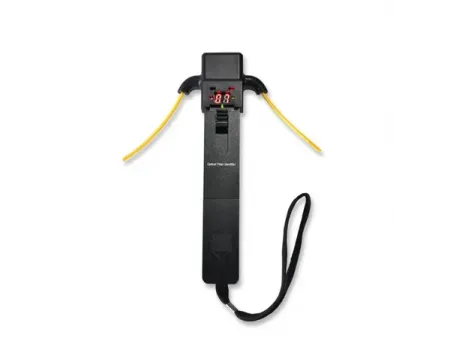

Accurately locating specific fibers without interrupting service is a critical task during network installation, maintenance, and troubleshooting. This handheld digital fiber identifier enables non-destructive testing at any point on single-mode and multi-mode fibers. By injecting modulated signals at 1310nm or 1550nm (270Hz, 1kHz, or 2kHz) into one end of the fiber, it allows users to pinpoint and identify the exact fiber along the line. In addition to detecting signals, the identifier measures optical power levels and determines signal direction, ensuring precise results even in complex environments like active networks.
Features
- Its digital display shows relative optical power values for clear and accurate readings.
- Supports in-line testing without interrupting ongoing network services.
- Recognizes modulated signals at 270Hz, 1kHz, and 2kHz.
- Equipped with a cover the blocks light which improves accuracy when working in bright outdoor conditions.
- One-touch operation simplifies testing and increases efficiency in the field.

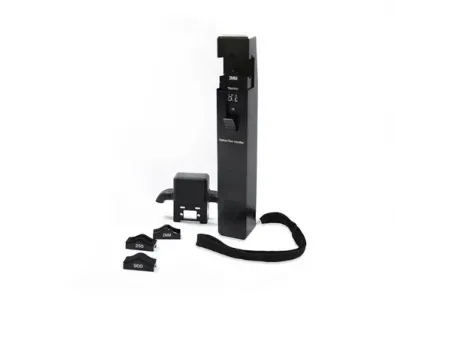

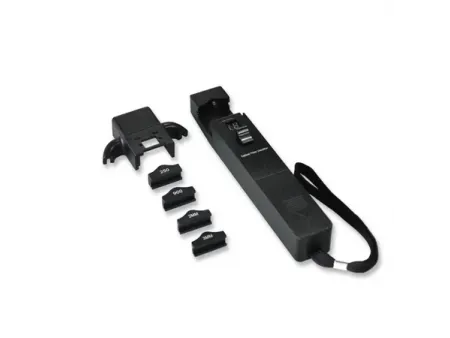

- Includes four interchangeable adapters to support bare fiber, 0.9mm, 2mm, and 3mm coated fibers.
- Mechanical damping and self-locking positioning ensure the fiber remains undamaged during testing.
Specifications
| Wavelength Range | 800 to 1700nm | |
| Detector Type | InGaAs | |
| Applicable Fiber | Ø0.25mm (bare fiber) Ø0.9mm, Ø2.0mm, Ø3.0mm (pigtail) | Common Adapter |
| Modulation Frequency | CW/270Hz/1kHz/2kHz | CW/270Hz/1kHz/2kHz |
| Signal Direction Indication | Left and right LED indicators | Left and right LED indicators |
| Signal Direction Detection Range (CW/0.9mm bare fiber) | -46 to 10dBm (1310nm) | >-30dBm |
| -50 to 10dBm (1550nm) | ||
| Signal Power Detection Range (CW/0.9mm bare fiber) | -50 to 10dBm | >-30dBm |
| Signal Frequency Indication | 270Hz/1kHz/2kHz | 270Hz/1kHz/2kHz |
| Signal Frequency Detection Range (Average) | Ø0.9,Ø2.0,Ø3.0 | >-20dBm |
| -30 to 0dBm (270Hz/1kHz) -25 to 0dBm (2kHz) | ||
| Ø0.25 | ||
| -25 to 0(270Hz,1kHz)-20 to 0 (2kHz) | ||
| Insertion Loss (Typical) | 0.8dB (1310nm) | 2.5(1550nm) |
| Visual Fault Locator (VFL) | No | Support |
| Red Light Output Power | No | 1mW (10mW optional) |
| Operating Temperature | 10 to 40℃ | |
| Storage Temperature | -25 to 70℃ | |
| Battery Operating Time | 10h | 10h |
| Dimensions | 196×30.5×27mm | 230×43×36mm |
| Alkaline Battery | 9V | 2*AA alkaline battery |
| Weight | 200g | 200g |
