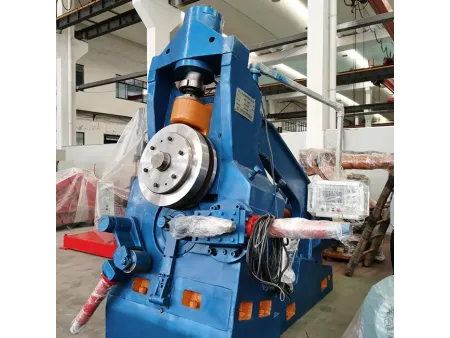

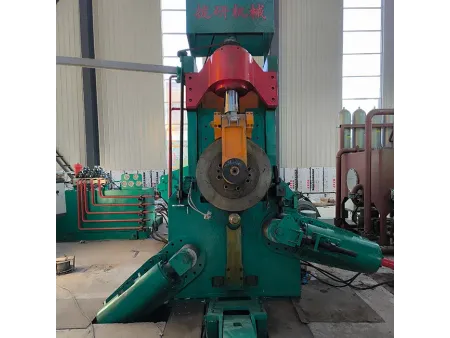

The D51K series CNC vertical ring rolling machine is specialized equipment used for ring rolling processing, capable of automating the ring expansion process without manual operation. It is an ideal equipment for processing seamless ring forgings, particularly suitable for processing bearings, gear rings, wheel rims, slewing bearings, flanges, and high-temperature alloy rings for aircraft, etc.

Ring outer diameter 160 mm – 1,600 mm
Ring height 30 mm – 1,000 mm
Maximum rolling force up to 2,500 kN, accommodating rings of various sizes, applications, and materials

Specifications

Model	Working range (outside diameter of ring) (mm)	Max. rolling force (kN)	Max. rolling speed (m/s)	Rolling wheel diameter (mm)	Min. center distance of wheel and mandrel (mm)	Ring height (mm)	Hydraulic cylinder stroke (mm)	Larger hole diameter of tapered sleeve (mandrel sleeve) (mm)	Main motor power (kW)	Dimensions (mm)
160A-160B	55-160	50	2.5	360	200	40	50	70(40)	18.5	1700×1525×1700
250CY	80-250	100	2.3	500	250	60	100	60	37	2300×1625×2310
250CY-B	80-250	150	1.8	500	250	130	100	60	45	2750×1625×2310
350A	180-350	250	1.5	680	345	120	110	90	75	3200×2000×2900
350B	180-350	300	1.5	680	345	160	110	90	90	4200×2000×2910
450A	250-450	350	1.4	720	380	120	130	110	75	3200×2700×3210
450B	250-450	450	1.6	730	380	220	130	110	110	4500×2700×3210
450KT	250-500	450	1.7	740	380	160	130	110	90	4500×3600×3200
450KY-B	250-500	500	1.5	760	380	230	130	110	110	5500×3600×3200
550A	350-600	500	1.7	740	380	180	150	110	110	5000×4000×3500
550B	350-600	550	1.3	760	380	300	150	110	132	5800×4000×3500
800A	400-800	500	1.37	780	380	80	200	110	110	5500×3500×4500
800B	400-800	550	1.37	800	380	200	200	110	132	5700×3500×4500
1000A	500-1000	800	1.3	820	460	100	250	130	132	4000×3500×3900
1000B	500-1000	800	1.3	820	460	200	250	130	132	5600×3500×3900
1200A	600-1200	800	1.3	820	460	100	250	130	132	4100×3800×4000
1200B	600-1200	800	1.3	820	460	200	250	130	132	5700×3800×4000
1300N	600-1300	800	1.3	800	485	300	350	180	160	5700×3800×4200

Note: Automatic series models available upon request.

Applicable materials

High-temperature alloy steel, bearing steel, carbon steel, copper, aluminum alloy, etc.

Applications

Bearing manufacturing: Producing bearing races with high efficiency and precision.
Mechanical parts processing: Forming gear blanks, pipe flanges, and other ring-shaped components for automotive, machinery, and chemical piping industries.

Features

Adopts a vertical structure. When the equipment rolls rings, the gravity direction of the ring is perpendicular to the rolling force direction, which helps to improve the stability and accuracy of the rolling process, reducing deformation and eccentricity of the ring during rolling.
Utilizes a CNC system to achieve precise control over the rolling process through CNC technology, including real-time monitoring and adjustment of parameters such as main roll speed, feed rate, and rolling force, ensuring the dimensional accuracy and quality stability of the rings.
Capable of achieving high-precision processing of ring dimensions, shape, and surface quality. Real-time monitoring and adjustment of various parameters during the rolling process ensure consistency and stability of product quality, reducing scrap rates.
High degree of automation, capable of continuous rolling production, reducing manual intervention and auxiliary time, greatly improving production efficiency.

Clients

D51-450A	Jiangyin Yuliang
D51-550B	Zhongji (Jiangyin)
D51K-550B	Huaxi Flange
D51K-450	Jinjiang Yangjun
D51K-550B	Taicang Jiulei
D51-1000A	Zhongji (Jiangyin)
D51K-550B	Hongxi Precision
D51K-800B	Hongxi Precision
D51-550B	Quanzhou Yongsheng
D51-450KY-B	Taicang Jiulei
D51-550B	Taicang Jiulei
D51-550	Boshan Zhiyue
D51K-550	Qingman Forging
D51K-350	Hongyu Bearing
D51K-500E	Jinan Hengsheng
D51K-450	Shandong Xinchuan Yuan
D51K-550	Zibo Houpu
D51K-450	Chongqing Xinyongqiang
D51K-1500	Xingda Petrochemical
D51-1500	Jiangyin Gaoyuan
D51-1500	Hangzhou Chengzhu
D51K-1500	Zhangjiagang Lexin

D51-630	Hanzhong Xinghan
D51K-550B	Giant Lightweight Alloy
D51K-800	Wazhou
D51K-450	Wafangdian Jincheng Forging
D51K-400E	Shanghai Jiaotong University
D51Y-250E	LYC
D51K-800E	LYC
D51K-250E	Yichuang Precision Engineering
D51K-250E-B	Ruyi Bearing
D51K-350E	Ruyi Bearing
D51K-800E	Yuanlong Forging
D51K-650E	Anhui Jindingsheng
D51K-650E	Anhui Jindingsheng
D51K-800B	Tianbao Group
D51K-1000B	Shanxi Jinshi
D51K-1200	Russia client
D51K-1000B	Shanxi Liangpin
D51K-1200B	Hebei Kairui Equipment
D51K-1000B	Cangzhou Yibo Pipeline Technology
D51K-1000B	Wuhan Zhongcheng
D51K-800E	Changzhou Changchao Mould
D51K-800E	China Aviation Technology Harbin Dongan Engine

What is a vertical ring rolling machine, and how does it differ from a horizontal type?

A vertical ring rolling machine feeds in the vertical direction, occupies less floor space, and automatically stabilizes the ring’s center of gravity—ideal for small- to medium-sized rings. Horizontal machines suit large-diameter, wide rings.

What is the maximum ring size your CNC ring rolling machines can handle?

Standard vertical machines process rings from 55 mm to 1,300 mm in outer diameter. Custom sizes are available upon request.

How do I choose a CNC vertical ring rolling machine?

Select based on forming needs: choose a standard vertical machine for radial-only forming; for combined radial and axial control, opt for a radial-axial model.

What is the typical lead time?

Standard models require 90–150 days. Custom configurations depend on specific requirements.
