Plastic Lid Thermoforming Machine (PP/PET/PVC)

Roll-fed plastic thermoforming machine for making various cup lids and food container lids

This thermoforming machine is designed to process PP, HIPS, PET, and PVC sheets into various types of cup lids and food container lids. In addition to lids, it can also produce small trays and similar packaging products, making it a versatile choice for disposable packaging manufacturers.

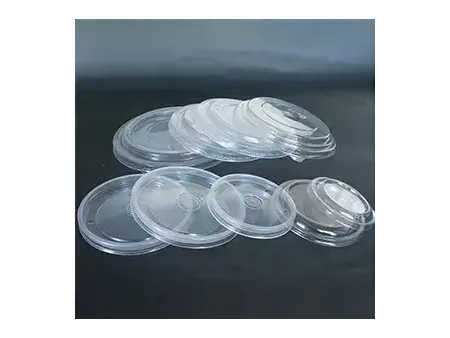

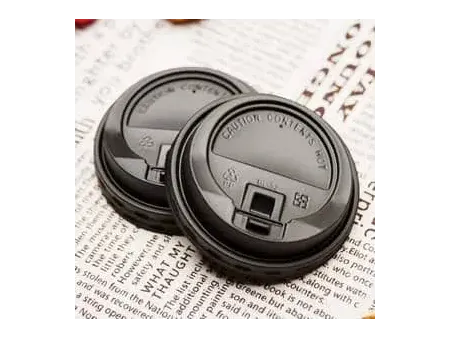

Sample Showcase

Technical Specifications

Model	ATC-45/32
Max. forming area	450×320mm
Max. forming depth	45mm
Applicable material	PP/HIPS/PVC/PET/PS
Cutting frequency	15-25 cycles/min
Stroke adjustable range	0-160mm
Total power	24kW
Air consumption	>0.2m³/min
Air pressure	0.4-0.7MPa
Power supply	380V/220V, 50Hz
Machine dimensions (L×W×H)	5500×100×1900mm
Machine weight	3200kg

Working Process

Roller
Heating
Forming
Hole punch
Cutting
Stackng
Rewinding

Features

Designed and manufactured in compliance with GMP standards for the medical industry and QS standards for the food industry
Capable of forming, punching, and cutting at the same time to minimize the risk of cross-contamination
Forming heating plate can open and close automatically with a delayed start function to help reduce material waste
Easy mold replacement allows production of different product specifications
Molds can be customized according to specific customer requirements
